Blue LED Technology Advancements Explained

In 1993, a Japanese engineer achieved what the tech industry said was impossible—he created a blue LED 1000 times brighter than any previous attempt. For three decades, scientists had failed to crack the blue LED problem, blocking the path to white LED lighting and full-color displays. That breakthrough earned Shuji Nakamura a Nobel Prize and changed how humanity lights the planet.

Blue LED technology uses gallium nitride semiconductors to emit light at 450-495 nanometers, enabling energy-efficient white light and full-color displays that revolutionized global lighting. This article explains the breakthrough, recent 2024-2025 advancements, and commercial applications. In 2014, the Nobel Prize in Physics recognized Isamu Akasaki, Hiroshi Amano, and Shuji Nakamura for solving this challenge.

What is Blue LED Technology?

Blue LED technology refers to semiconductor light-emitting diodes that emit photons in the blue wavelength range (450-495 nm) using gallium nitride (GaN) and indium gallium nitride (InGaN) materials.

Red LEDs arrived in 1962 when Nick Holonyak Jr. created the first practical visible-spectrum LED. Green LEDs followed in the 1970s. But blue refused to cooperate for three more decades. Scientists knew blue was the missing piece needed to create white light—you need red, green, and blue for the full color spectrum—but the materials that could theoretically work were nearly impossible to manufacture.

Then came 1993. Shuji Nakamura at Nichia Corporation produced the first commercially viable high-brightness blue LED—1000 times brighter than previous attempts. He used indium gallium nitride with an innovative low-temperature buffer layer technique that solved the crystal growth problems stumping everyone else.

The impact was immediate. With blue LEDs available, engineers could produce white light by coating the blue chip with yellow phosphor. Blue and yellow light mix to create white. This enabled the energy-efficient LED bulbs now replacing incandescent lighting worldwide. Blue LEDs also made full-color displays possible.

Nichia's revenue jumped from ¥20 billion (1993) to ¥80 billion (2001), with 60% from blue LED products. The 2014 Nobel Prize in Physics honored this achievement, noting that "incandescent light bulbs lit the 20th century; the 21st century will be lit by LED lamps."

The 30-Year Challenge: Why Blue LEDs Were So Difficult

LEDs emit light when electrons jump across an energy gap in a semiconductor. The gap's size determines the color. Red LEDs need 1.4 electron-volts (eV), green needs 2.26 eV, but blue demands 2.6-3.4 eV. Gallium nitride has the right 3.37 eV bandgap, but manufacturing it proved extraordinarily difficult.

Scientists tried other materials first. Zinc selenide looked promising but produced crystals too poor in quality—devices lasted only hours. Silicon carbide had a suitable bandgap but an "indirect" structure making efficient light emission nearly impossible.

Herbert Paul Maruska at RCA actually created the first blue LED in 1972 using magnesium-doped gallium nitride. The problem? Far too dim for practical use. When RCA founder David Sarnoff died and the company pivoted toward computing, the blue LED project was scrapped. That research sat forgotten for 15 years.

The core problem was crystal growth. LEDs require near-perfect crystalline structure—any defects waste energy as heat instead of light. Scientists couldn't grow high-quality GaN crystals. Every attempt produced crystals riddled with defects.

Then came the p-type doping problem. LEDs need two semiconductor types: n-type (electron-rich) and p-type (with "holes"). Creating n-type GaN was straightforward, but p-type seemed impossible. In 2015, UK scientists discovered why: magnesium atoms trap the very holes they create. The energy required to free those trapped holes would melt the gallium nitride.

The breakthrough came in stages. Isamu Akasaki and Hiroshi Amano grew the first high-quality GaN crystal in 1985 using a low-temperature aluminum nitride buffer layer. In 1989, they discovered electron beam treatment could activate p-type behavior, but this was expensive.

Shuji Nakamura found a better way. He developed improved crystal growth using two-flow MOCVD (metalorganic chemical vapor deposition) and discovered that simply heating magnesium-doped GaN in nitrogen activated p-type properties. In 1993, he announced his commercially viable blue LED. Remarkably, he achieved this after his company ordered him to stop, deeming the project too expensive.

How Blue LED Technology Works

Blue LEDs operate on electroluminescence. When current flows through the device, electrons and holes recombine, releasing energy as light. The structure starts with a sapphire or silicon carbide substrate, then layers of n-type GaN (electron-rich), InGaN quantum wells (where light generates), and p-type GaN (with holes). Metal electrodes allow current flow.

The wavelength depends on InGaN composition. More indium shifts toward green, less indium shifts toward violet. Blue LEDs emit at 450-495 nm, typically peaking around 460 nm, requiring 2.6-3.4 electron-volts.

One challenge is light extraction. Gallium nitride's high refractive index causes internal reflection. Patterned sapphire substrates (PSS) with textured patterns reduce this, improving light extraction by 20-30%.

Creating white light uses two methods. The phosphor conversion method coats a blue LED with yellow phosphor (cerium-doped yttrium aluminum garnet). Blue photons excite the phosphor to emit yellow light. Combined, they appear white, converting 50% of electrical energy into light versus 4-5% for incandescent bulbs. Modern white LEDs achieve 150-200 lumens per watt commercially, with labs exceeding 300 lm/W.

The RGB method uses separate red, green, and blue LEDs mixed electronically. This creates white or any color but requires more complex electronics. This approach powers display pixels.

Modern blue LEDs achieve 60-80% external quantum efficiency (photons emitted per electron injected). Compare luminous efficacy of 150-200 lm/W to incandescent bulbs at 16 lm/W or fluorescent at 70 lm/W.

Recent Technological Advancements (2020-2025)

In July 2024, Rutgers University announced a breakthrough in eco-friendly blue LED materials. Professor Jing Li's team developed copper-iodide hybrid emitters that are non-toxic and stable—solving problems with lead-halide perovskites that are toxic and unstable.

Their deep-blue LEDs achieved 12.6% external quantum efficiency, among the highest for solution-processed blue LEDs. Devices emit at ~450 nanometers with 204-hour operational half-lifetime. The breakthrough used "dual interfacial hydrogen-bond passivation" to stabilize the material. Funded by the U.S. Department of Energy, this research points toward sustainable blue LED production without toxic heavy metals.

Alternative technologies are advancing. Quantum dot blue LEDs use nanocrystals with tunable wavelength, though efficient blue QDs remain harder to produce than green or red. Organic blue LEDs offer flexibility but degrade faster than other colors. Perovskite blue LEDs offer simpler manufacturing but face toxicity and stability challenges.

Manufacturing improvements include patterned sapphire substrates (PSS) becoming standard, texturing substrates to reduce dislocations and improve light extraction by 20-30%. Dislocation densities have dropped from 10^8-10^10 per cm² to less than 10^6 per cm².

The industry addresses "efficiency droop"—efficiency dropping at high currents above 100mA. Solutions include better electron blocking layers, improved quantum well designs, and enhanced thermal management. Blue LEDs generate more heat than red or green, requiring sophisticated heatsinks, thermal interface materials, and direct chip attachment to metal core PCBs.

Performance milestones: 2014 commercial LEDs achieved ~150 lm/W, 2020 high-end products reached 200 lm/W, and 2024 labs exceeded 300 lm/W—approaching the theoretical maximum of ~325 lm/W.

Commercial Applications & Market Impact

Residential LED adoption jumped from 4% (2015) to 47% (2020), projected to reach 72% by 2030. These bulbs save 75-80% energy versus incandescent and last 25,000-50,000 hours versus 1,000 hours. Smart bulbs offer 16 million colors and tunable white light.

In commercial settings, 21% of commercial electricity went to lighting in 2012. Offices, warehouses, and retail spaces are converting to LEDs. Cities worldwide are converting street lighting, achieving 50-70% energy reduction versus high-pressure sodium lamps.

For developing regions, 1.5 billion people lack electricity access. Solar-powered LED systems replace dangerous kerosene lamps, providing safe lighting with modest solar panels and minimal maintenance.

Display technology relies entirely on blue LED innovation. Smartphones and tablets use LCD panels with blue LED backlighting or OLED displays with individual blue organic LEDs. Televisions use LED-backlit LCD panels, with premium Mini-LED systems using thousands of local dimming zones. Micro-LED uses individual blue LEDs per pixel. Quantum dot displays use blue LEDs to excite quantum dots producing pure red and green.

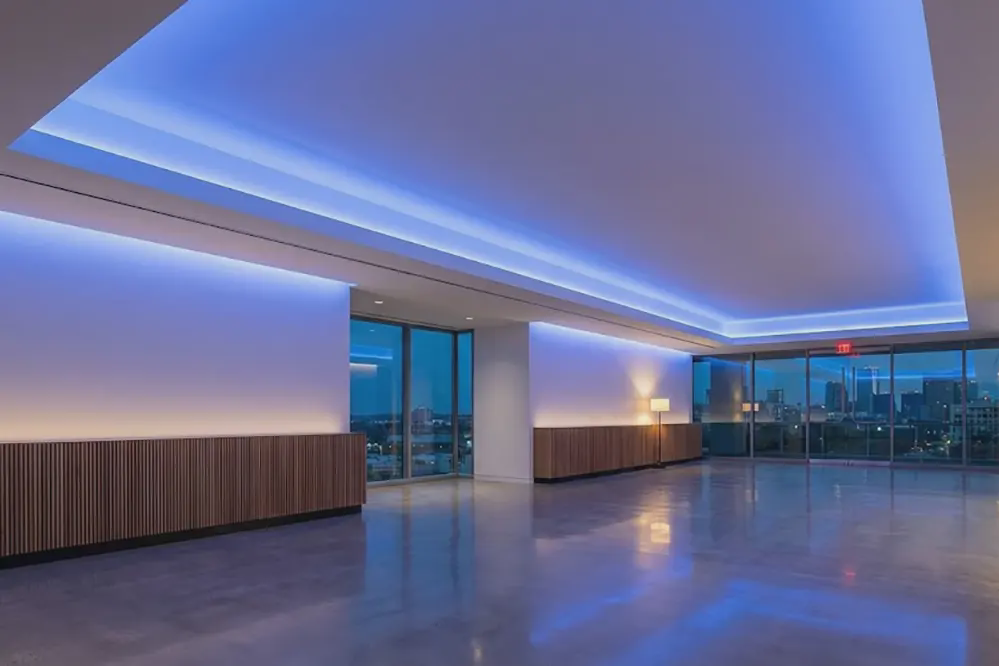

For commercial LED strip applications, blue LEDs enable architectural accent lighting in cove lighting, under-cabinet, and toe-kick installations. Strips use SMD chips (3528, 5050, 2835) with densities from 60-240 LEDs per meter. IP ratings matter: IP20 for indoor dry, IP65 for damp locations, IP67/68 for submersible outdoor use.

Commercial signage uses LED strips as neon replacements in channel letters. The 50,000+ hour lifespan suits 24/7 operation. Retail environments use blue accent lighting for jewelry and electronics displays. Hotels use cool-white LEDs (5000K+) with high blue content for corridors.

Specialized applications include medical phototherapy for neonatal jaundice (460-490nm breaks down bilirubin), agricultural grow lights (400-500nm promotes vegetative growth), Blu-ray technology (405nm blue lasers for 5-10x DVD storage density), and automotive LED headlights (blue LED + phosphor = 6000K white light).

The global LED market was $75 billion (2020), projected to reach $160 billion (2030). Since 20-30% of global electricity goes to lighting, blue LED-enabled lighting cuts consumption by 50%+ versus traditional sources.

Health Considerations & Solutions

Blue light from LEDs (400-500nm, peak concern 440-450nm) primarily affects circadian rhythm. Blue light suppresses melatonin production—beneficial during daytime for alertness but problematic at night for sleep. Research links chronic sleep disruption to diabetes, cardiovascular disease, and cancer risk.

Digital eye strain causes dry eyes and fatigue, but the American Academy of Ophthalmology states no evidence blue light from screens damages eyes. Real culprits are extended screen time and poor ergonomics.

"Blue light hazard" refers to extreme exposure like staring at the sun or welding arcs. The International Commission on Illumination emphasizes normal exposure to typical light sources carries "negligible" risk. Current scientific consensus finds no evidence normal LED exposure increases age-related macular degeneration risk.

Children may be more vulnerable—their clear eye lenses allow nearly 100% of blue light to reach retinas versus adults whose lenses filter some blue wavelengths.

Mitigation strategies include using warm white LEDs (2700K-3000K, less blue content) for evening spaces and cool white (5000K-6500K) for daytime task lighting. Enable "night mode" on devices to reduce blue output. Avoid LED screens 1-3 hours before bedtime. Use blue-blocking glasses with amber tints for evening.

For commercial lighting, proper diffusion with frosted covers reduces glare. Select CCT matching the space: 4000K-5000K for offices, 2700K-3000K for restaurants. Quality LED drivers eliminate flicker causing headaches. Human-centric lighting (HCL) systems adjust CCT throughout the day, mimicking natural daylight cycles.

The Future of Blue LED Technology

Micro-LED displays use individual microscopic blue LEDs as subpixels, offering higher brightness than OLED without burn-in. Applications include premium TVs, AR/VR headsets, and smartwatches. The challenge is manufacturing yield.

Li-Fi (Light Fidelity) uses rapid LED flickering for data transmission at gigabit-per-second rates. Blue LEDs suit this with fast switching speed. Applications include secure communications and underwater networking.

Blue laser diodes extend the technology for high-power projectors and automotive headlights. Shuji Nakamura founded Blue Laser Fusion in 2022, raising $25 million for laser-driven nuclear fusion research.

Circadian-friendly lighting systems adjust blue content by time of day—high (6000K+) in morning, minimal (2700K) in evening. Integration with smart home ecosystems makes this automatic.

Since 20-30% of global electricity goes to lighting, LED conversion offers 50-70% energy savings—enormous carbon reduction. Blue LEDs last 25,000-100,000 hours (3-11 years continuous), dramatically reducing waste. LEDs contain no mercury unlike fluorescent lamps.

Cost reductions have been dramatic. 1990s blue LEDs were extremely expensive; by 2025, a 100-pack costs under $10. This accessibility enables developing world adoption.

Research focuses on approaching theoretical efficiency maximum of ~325 lm/W, improving color rendering index (CRI) for better color accuracy, developing flexible and transparent LEDs for new applications, and eliminating efficiency droop at high currents.

Frequently Asked Questions

What wavelength is blue LED light?

Blue LED light typically emits in the 450-495 nanometer range, with most commercial blue LEDs peaking at approximately 460 nm. The specific wavelength can be fine-tuned by adjusting the indium content in the InGaN semiconductor material.

Why did blue LEDs win the Nobel Prize in Physics?

Blue LEDs won the 2014 Nobel Prize because their invention enabled efficient white LED lighting, revolutionizing global illumination. Isamu Akasaki, Hiroshi Amano, and Shuji Nakamura solved a 30-year challenge. Blue was the missing piece needed to create white light by combining with red and green, or using blue with yellow phosphors. This replaced incandescent and fluorescent lighting, saving enormous energy worldwide.

Are blue LEDs harmful to your eyes?

Normal exposure to blue LEDs in lighting and screens is safe according to the American Academy of Ophthalmology and International Commission on Illumination. "Blue light hazard" refers to extreme exposures like staring at the sun—not everyday LED use. However, evening exposure can disrupt sleep by suppressing melatonin. The real concern is circadian disruption, not eye damage.

How do blue LEDs create white light?

Blue LEDs create white light two ways. Most commonly, a blue LED chip is coated with yellow phosphor (Ce:YAG). Blue light hitting the phosphor emits yellow light; combined, they appear white. Alternatively, separate red, green, and blue LEDs mix electronically to produce white or any color.

What makes blue LEDs more expensive than red or green LEDs?

Blue LEDs require gallium nitride semiconductors, more difficult to manufacture than materials for red and green LEDs. Growing high-quality GaN crystals requires precise conditions, specialized MOCVD equipment, and expensive substrates like sapphire. However, prices have dropped dramatically since the 1990s—now affordable for mass-market applications.

Can blue LED light damage artwork or fabrics?

Blue LEDs pose less risk than traditional lighting because they emit minimal UV radiation. Incandescent and fluorescent lights produce significant UV that fades colors and degrades materials. Museums worldwide have converted to LED lighting because it preserves collections better.

What is the typical lifespan of blue LED technology?

Blue LED lifespans range from 25,000 to 100,000 hours depending on quality—3 to 11 years of continuous operation. Consumer LED bulbs last 25,000-50,000 hours (about 22 years at 3 hours daily). This vastly exceeds incandescent bulbs (1,000 hours) and compact fluorescent lamps (10,000 hours).

How efficient are modern blue LEDs compared to traditional lighting?

Modern blue LED-based white lighting achieves 150-200 lumens per watt commercially, with labs exceeding 300 lm/W. They convert 50%+ of electrical energy into light. Compare this to incandescent bulbs at 16 lm/W (4% efficiency) and fluorescent lights at 70 lm/W. For commercial buildings where 20-30% of energy goes to lighting, LED conversion can cut total energy costs by 10-20%.

Conclusion

Blue LED technology transformed from an impossible challenge into one of humanity's most impactful inventions. Shuji Nakamura's 1993 breakthrough—creating a blue LED 1000 times brighter than previous attempts—earned a Nobel Prize and sparked a global lighting revolution.

Today's 2024-2025 advancements in copper-iodide materials and quantum dot technologies show innovation continues. For commercial specifiers and contractors, understanding blue LED technology means choosing the right color temperature, wavelength, and quality for applications from architectural lighting to office renovations.

As efficiency approaches theoretical limits (325 lm/W) and costs fall, blue LED technology remains central to global energy reduction, with 20-30% of worldwide electricity used for lighting now replaceable by 50% more efficient LEDs.
