All About Beam Angle & Viewing Angle: Detailed Insights

Choosing the wrong beam angle is one of the most expensive mistakes in commercial lighting projects. A warehouse discovered this after installing 200 LED fixtures with 120° beam angles at 25-foot ceilings—weak floor illumination forced a complete retrofit with 45° fixtures, costing $47,000 in wasted equipment and labor.

Understanding beam angle, field angle, and viewing angle isn't just about reading spec sheets. It's knowing which specifications matter for your application and how they impact project costs, energy efficiency, and lighting quality.

Beam angle is the angular spread of light from an LED source, measured at the point where light intensity drops to 50% of its maximum center value, typically expressed in degrees and directly impacting coverage area, light intensity distribution, and fixture spacing requirements for commercial installations.

What Is Beam Angle in LED Lighting?

According to the CIE (International Commission on Illumination) standard, beam angle measures the cone of light where intensity remains at or above 50% of peak output. Standing directly under an LED fixture gives you 100% intensity. The beam angle defines how far you can move to either side before brightness drops to half.

For a 40° beam angle fixture mounted 10 feet high, the bright central zone creates a circle roughly 7.3 feet wide on the floor. Beyond that, you enter the field angle zone where light fades from 50% down to 10% intensity.

This measurement determines fixture count, spacing, and whether you'll have dark spots or proper coverage—the primary drivers of project budget and lighting quality.

Beam Angle vs Field Angle: Key Differences

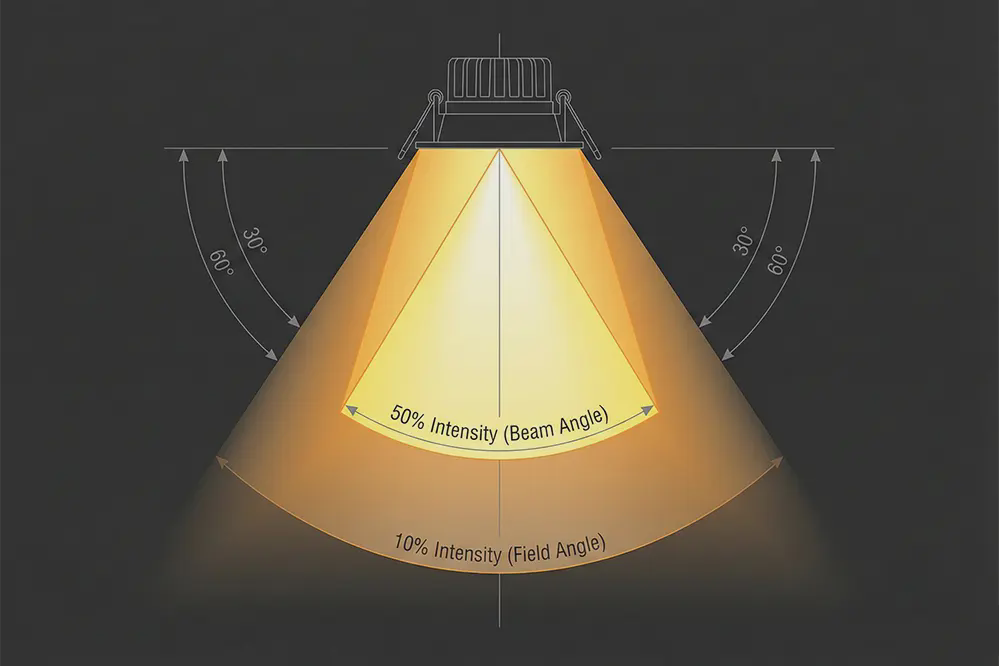

Beam angle captures the bright central zone (50% to 100% intensity). Field angle extends further, measuring out to where intensity drops to 10% of maximum. Between these lies spill light—useful illumination often forgotten in calculations but critical for preventing harsh transitions.

An LED downlight might specify beam angle of 38° and field angle of 68°. You get intense light within 38°, moderate illumination between 38° and 68°, and minimal scattered light beyond 68°.

For commercial applications, field angle prevents the "cave effect" where spaces feel overly spotlit with dark gaps. When calculating fixture spacing for uniform illumination, field angle is more important than beam angle. Ignore field angle and you'll overspec fixture count by 30-40% or create uneven lighting that fails inspection.

What Is Viewing Angle in LED Technology?

Viewing angle has nothing to do with beam angle, despite both being measured in degrees.

Viewing angle applies to LED displays, screens, and digital signage. It measures the maximum angle from which you can view the screen while maintaining acceptable image quality, color accuracy, and brightness. Stand too far off-axis and colors shift or the image washes out.

LED displays specify horizontal viewing angle (left-right visibility, example: 140°) and vertical viewing angle (top-bottom visibility, example: 120°). A digital menu board with 140° horizontal viewing angle means customers can view it clearly from 70° left or right of center.

For LED strip lighting and fixtures, viewing angle is irrelevant. You're measuring how light distributes into space—that's beam angle. The confusion happens when manufacturers incorrectly use "viewing angle" for LED strips when they mean beam angle.

Clarify terminology when sourcing: LED displays use viewing angle. LED strips and fixtures use beam angle and field angle.

How Beam Angle Affects Light Distribution and Performance

Two LED strips with identical lumen output deliver vastly different results based solely on beam angle.

Consider two 1,000-lumen LED strips—one with 30° beam angle, another with 120°. The 30° strip concentrates all 1,000 lumens into a narrow cone, creating high intensity perfect for highlighting. The 120° strip spreads those lumens across a wider area, reducing intensity but covering more square footage.

Ceiling height dominates beam angle selection. Mount a 120° LED strip at 20 feet and wide spread dilutes intensity before reaching the floor. Switch to 45° and you push concentrated light the full distance.

Coverage area scales with distance and angle. The formula: diameter = 2 × distance × tan(beam angle ÷ 2). For a 60° beam at 10-foot mounting: diameter = 2 × 10 × tan(30°) = 11.5 feet. Double the height to 20 feet and coverage doubles to 23 feet—but intensity drops dramatically.

For B2B buyers, specifying beam angle requires three parameters: mounting height, required intensity at target surface, and acceptable uniformity ratio (typically 0.7 for general lighting).

NEMA Beam Angle Classification System

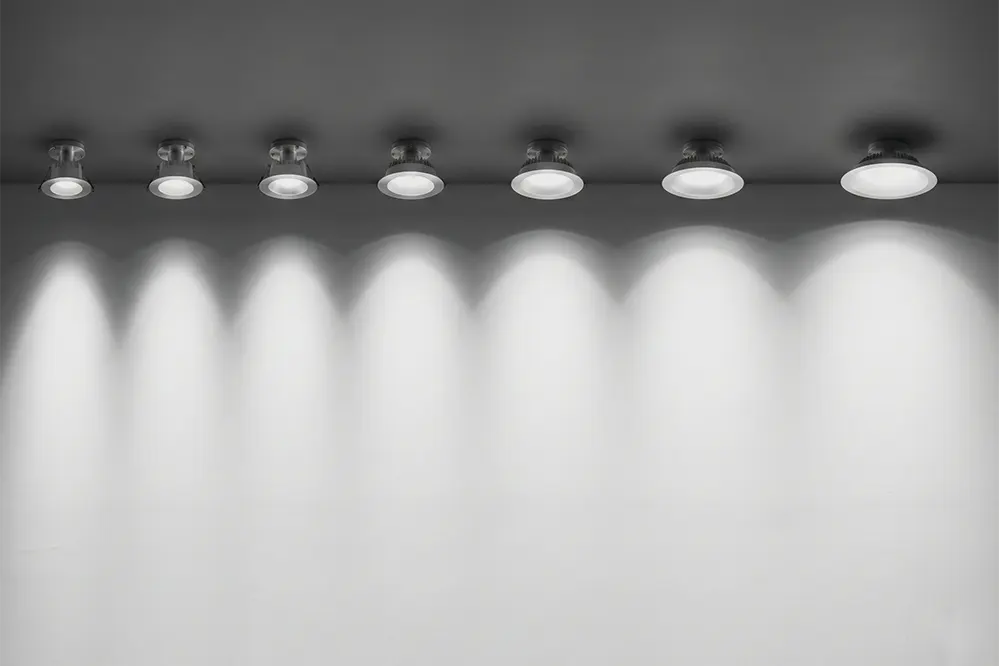

The National Electrical Manufacturers Association (NEMA) standardized beam angle classifications into seven types, simplifying specification across manufacturers.

Architectural specifications often reference NEMA types. A spec calling for "NEMA Type 4 LED downlights" communicates 46°–70° beams without manufacturer ambiguity. Note that NEMA primarily applies to directional fixtures. LED strips use actual degree specifications for precision.

Types of Beam Angles for LED Strip Lights

Standard LED strips ship with 120° beam angles—the natural emission from SMD chips without optical modification. Specialized applications require different angles.

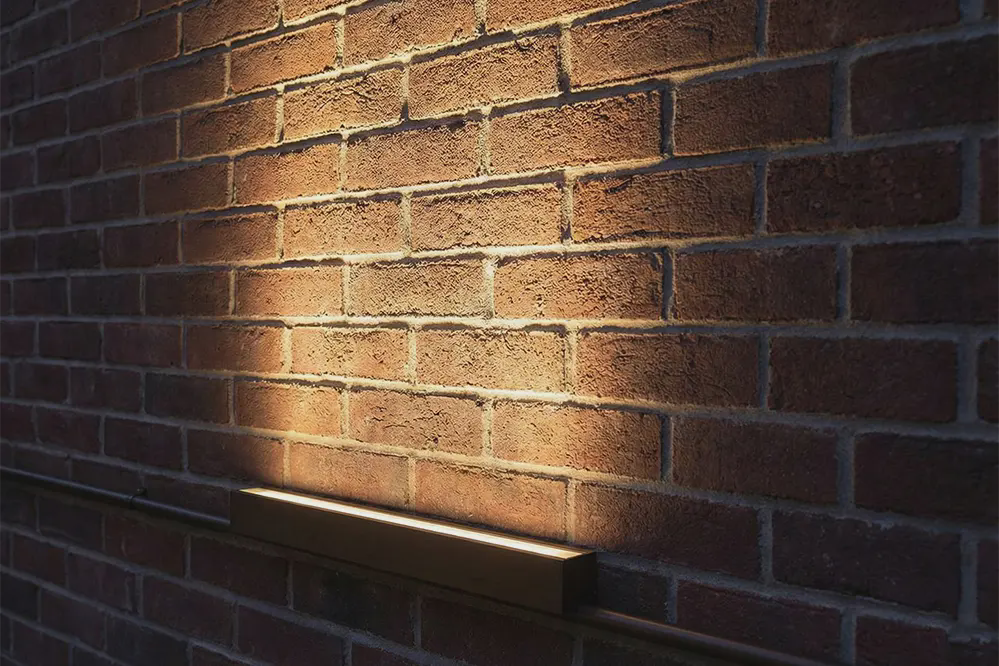

Narrow beam angles (10°–45°) use secondary optics to create wall washing effects. A 30° strip mounted 10 inches from a wall projects light 15-20 feet vertically, perfect for facade lighting. These are directional—mount them backward and you light the ceiling instead of the wall.

Medium beam angles (60°–90°) balance focus and coverage, ideal for under-cabinet lighting. A 75° beam from 18-inch cabinet height covers a 24-inch countertop, providing 300-500 lux for task work.

Wide beam angles (120°–140°) dominate general ambient applications. The 120° standard creates comfortable overlap when fixtures space at 1.5× mounting height. COB LED strips naturally produce wider, more uniform patterns than SMD strips.

Ultra-wide angles (160°–180°) serve backlighting and lightbox applications, emitting nearly hemispherical patterns. Combined with diffusers, they create dot-free, uniform glow for signage and decorative panels.

Why Beam Angle Matters in Commercial Lighting Design

Beam angle determines fixture count, which drives 60-70% of material costs. A 10,000-square-foot retail space with 12-foot ceilings illustrates this: using 60° downlights requires 85 fixtures for 30 footcandles, but 90° beams reduce count to 62—a 27% hardware reduction.

However, wider beams must maintain adequate intensity from mounting height. If code requires minimum 20 footcandles at floor level and wider beams can't deliver, you're back to narrower beams and more fixtures.

Energy efficiency connects to beam angle through efficacy loss. Wider angles often require larger LED chips to maintain intensity, reducing lumens per watt. A 30° fixture might achieve 150 lm/W while a 120° fixture delivers 135 lm/W due to optical losses.

Aesthetics impact sales and productivity. Retail studies show merchandise highlighted with 25°–40° narrow beams generates 12-18% higher sales than uniform wide beam lighting. Office environments need 90°–120° wide beams for shadow-free lighting that minimizes eye strain.

Beam Angle Applications in LED Strip Lighting

Under-cabinet task lighting: Use 60°–75° beams mounted at cabinet front edge, angled downward. This provides shadow-free task light without glare.

Cove lighting: Indirect cove lighting uses 120°+ beams bouncing off ceilings. Direct cove lighting uses 30°–60° beams from crown molding to wash walls with grazing light.

Wall washing: Requires 30°–60° beams positioned 6-18 inches from the wall. To wash a 20-foot wall height, mount 45° strips 24 inches from the wall base.

General ambient lighting: Standard 120° strips in channels with diffusers create uniform office/corridor illumination. Specify high-CRI (90+) for accurate color rendering.

Backlighting: Ultra-wide 160°–180° beams with minimal intensity variation. COB strips excel here, creating uniform backlighting without visible LED dots.

Architectural facade lighting: Narrow 15°–40° beams create dramatic upwashing or downwashing on building exteriors. Require IP65+ rated strips with specialized beam control optics.

COB vs SMD LED Strips: Beam Angle Considerations

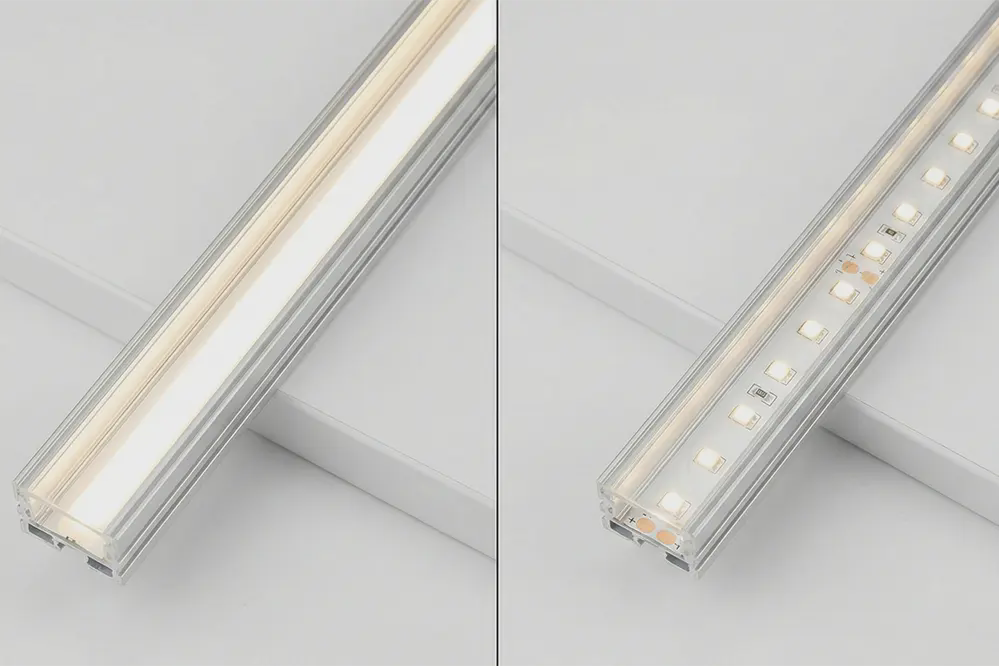

SMD LED strips use discrete chips (60-140 LEDs per meter), each acting as an individual point source. This creates natural hotspots directly in front of each chip. At close viewing distances, you see distinct bright spots rather than continuous illumination.

COB LED strips place chips so densely (480+ per meter) they form a continuous light-emitting surface with no visible individual points. COB naturally produces wider, more even beam patterns (120°–180°) without optical modification.

For tight beam control (under 60°), use SMD strips with secondary optics. For uniform wide distribution (120°+), COB delivers superior results with fewer accessories. Aluminum channels with diffusers modify effective beam angles for both technologies—a 120° SMD strip in a 45° frosted diffuser channel outputs roughly 90°–100° effective beam.

How to Choose the Right Beam Angle for Your Project

Step 1: Assess ceiling height. Standard commercial ceilings (8-10 feet) work with 60°–120° beams. High bay (15-30 feet) requires 30°–45° beams to maintain floor-level intensity. Rule: divide ceiling height by 1.2 to estimate maximum effective beam angle.

Step 2: Determine application type. Task lighting needs high intensity (500+ lux), favoring narrower beams. Ambient lighting accepts lower intensity (200-300 lux), allowing wider beams. Accent lighting uses narrowest beams (10°–25°) for 5:1 contrast ratios.

Step 3: Calculate coverage area. Formula: diameter = 2 × height × tan(beam angle ÷ 2). For 10-foot ceilings with 60° beams: 11.5-foot diameter circles. Space fixtures 8-9 feet apart (70-80% of coverage) for uniform illumination.

Step 4: Consider fixture spacing. Spacing criterion (SC) formula: maximum spacing = SC × mounting height. Most LED fixtures have SC values of 0.9-1.3.

Step 5: Evaluate energy efficiency. Balance fixture efficiency (lumens per watt) with system efficiency (total fixtures needed). Run calculations comparing 3-4 beam angle options to find the optimal cost-per-square-foot coverage.

Factors Influencing Beam Angle Selection

Ceiling height: Each 5-foot increase requires roughly 15°–20° reduction in beam angle. 8-foot ceilings work with 120° beams, 15-foot needs 60°, 25-foot demands 30°–40°.

Room size and geometry: Small rooms (under 200 sq ft) benefit from wider beams bouncing off walls. Large rooms (over 1,000 sq ft) need controlled beams to minimize wasted light. Irregular geometries require mixed beam angles by zone.

Color temperature pairing: Narrow beams with cool white (5000K-6500K) create intense task lighting. Wide beams with warm white (2700K-3000K) produce comfortable ambient lighting.

Surface reflectivity: Dark surfaces (under 30% reflectivity) require 10-15% tighter fixture spacing. Light surfaces (over 70%) allow 10-15% wider spacing due to reflected light filling gaps.

Lighting layers: Properly designed spaces use three layers with different beam angles: ambient (wide), task (medium), and accent (narrow), controlled independently for depth and functionality.

Calculating Beam Spread and Fixture Spacing

Beam spread formula: Diameter = 2 × Distance × tan(Beam Angle ÷ 2)

Example: 40° beam, 8-foot ceiling

• Half angle: 20°, Tangent: 0.364

• Beam spread: 2 × 8 × 0.364 = 5.8 feet diameter

• Spacing: 4-4.5 feet apart (75-80% of beam spread)

Spacing criterion formula: Maximum Spacing = SC × Mounting Height

Manufacturers provide SC values (typically 0.9-1.3) in photometric reports. A fixture with SC = 1.1 at 10-foot height allows 11-foot maximum spacing.

Practical commercial calculation:

1. Measure room: 50' × 80' with 12-foot ceilings

2. Select beam: 60° (based on height guidelines)

3. Calculate coverage: 13.8 feet diameter

4. Determine spacing: 10 feet

5. Fixture count: (50÷10) × (80÷10) = 40 fixtures

6. Add perimeter: +18 fixtures = 58 total

For final design, verify with IES files and photometric software (DIALux, AGi32) to account for room reflectance and obstructions.

Technical Specifications: What to Look For

Key specifications to request:

• Beam angle (50% intensity): Primary spec

• Field angle (10% intensity): Secondary coverage

• Center beam candlepower (CBCP): Peak intensity in candelas

• Lumens: Total light output

• Efficacy: Lumens per watt

IES files contain full photometric data for accurate lighting design software simulations. Request these for any fixture spec'd over 50 units.

Beam angle tolerance matters for large installations. Specify maximum ±3° tolerance for critical applications (retail, hospitality), ±5° for general commercial.

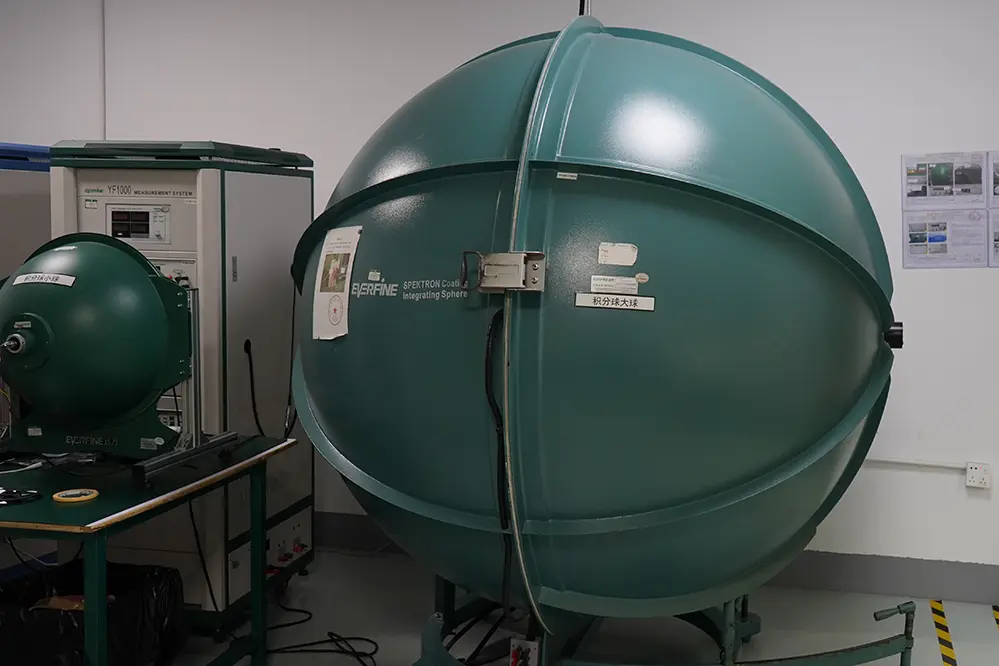

Certified test reports from third-party labs (Intertek, UL, TÜV) validate manufacturer claims. Professional-grade LED products include this documentation as standard.

Common Beam Angle Selection Mistakes

Mistake 1: Using wide beams with high ceilings. Installing 120° LED high bays in 28-foot ceilings spreads light so wide it dissipates before reaching the floor. Fix: At 28-foot heights, specify 40°–45° maximum. Narrow beams maintain intensity over distance.

Mistake 2: Insufficient fixture spacing. Spacing 60° downlights 15 feet apart in 10-foot ceilings creates dark spots. Beam overlap is critical—fixtures should space at 70-80% of coverage diameter, not 100%. Fix: Use spacing criterion formula (SC × height) for maximum spacing.

Mistake 3: Confusing viewing angle with beam angle. Ordering "LED strips with 140° viewing angle" expecting wide light distribution delivers LED display modules instead. Fix: For LED strips and fixtures, always specify "beam angle." Only use "viewing angle" for LED displays and screens.

Energy Efficiency and Beam Angle Optimization

Beam angle influences energy through fixture count, lumen requirements, and optical losses.

Wider beam angles cover more area per fixture, reducing hardware and energy costs—but only if they deliver adequate intensity. Narrower beams require more fixtures but each needs fewer lumens per unit.

Case studies:

• A retail space reduced energy 22% switching from 90° to 60° beams. Fixture count increased 15%, but narrower beams required fewer lumens per fixture, decreasing total wattage.

• A warehouse reduced fixture count 29% (from 120 to 85 units) switching from 60° to 40° high bays at 30-foot heights. Annual energy savings: $4,300.

ROI optimization: Calculate total cost of ownership over 10-15 years including initial cost, operating cost (energy × hours × rate × years), and maintenance cost. Optimize beam angle by minimizing total ownership cost, not just first cost. Higher-priced fixtures with optimized beams delivering 20% energy savings pay for themselves in 3-5 years.

FAQ

1. What is the standard beam angle for LED strip lights?

Most LED strip lights have a 120° beam angle as the natural emission pattern from SMD chips without optical modification. This serves general ambient lighting, cove lighting, and under-cabinet applications. Specialized strips offer 30°, 60°, or 160° beams using secondary optics or chip positioning for wall washing, task lighting, or backlighting applications.

2. What's the difference between beam angle and viewing angle?

Beam angle measures how light distributes from LED fixtures into a space—the cone of light where intensity remains above 50% of peak. Viewing angle measures the maximum off-axis viewing angle for LED displays and screens where image quality remains acceptable. Beam angle applies to lighting products; viewing angle applies to display products. They're completely different specifications despite both being measured in degrees.

3. How do I calculate the beam angle I need for my space?

Start with ceiling height. Divide height by 1.2 to get maximum effective beam angle. For a 12-foot ceiling: 12 ÷ 1.2 = 10 feet, suggesting 40°-60° beams. Then use the formula: coverage diameter = 2 × height × tan(beam angle ÷ 2) to verify coverage meets your spacing requirements. Finally, check if the beam delivers adequate intensity at floor level for your application (task = 500+ lux, ambient = 200-300 lux).

4. Can I change or modify the beam angle of LED strips?

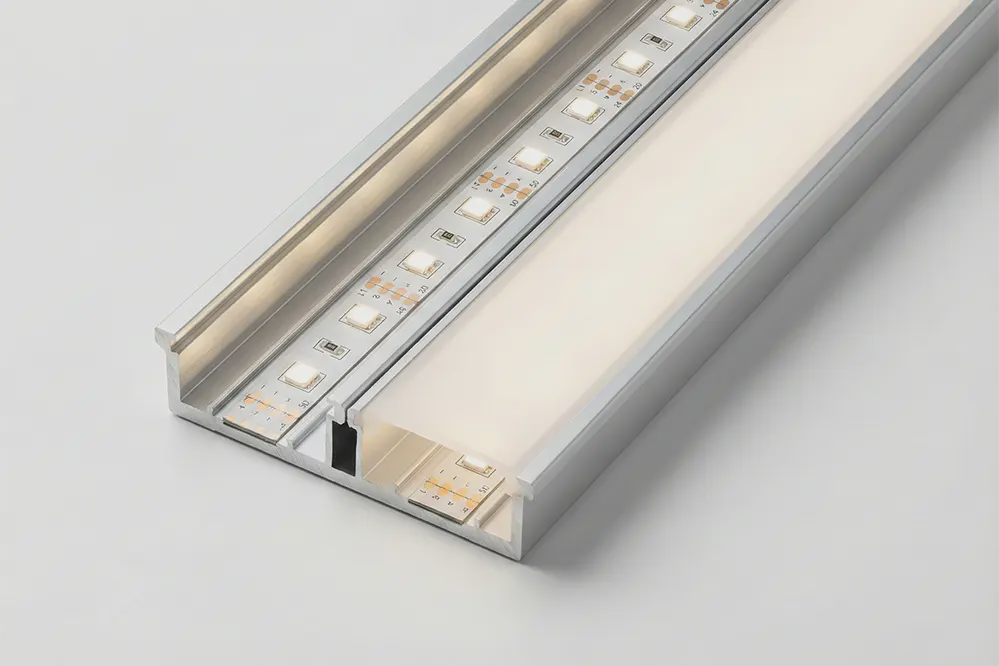

Yes, through aluminum channels with diffusers or secondary optics. A frosted diffuser widens beam spread by 10-20° while softening hotspots. Lenses and reflectors can narrow beams by 20-40° for more focused output. However, these modifications introduce 10-25% light loss through absorption and reflection. For applications requiring specific beam angles, specify purpose-built LED strips rather than modifying standard products.

5. What beam angle is best for high ceilings (15+ feet)?

High ceilings require narrow beam angles to maintain intensity over distance. For 15-20 foot ceilings, use 40°-50° beams. For 20-28 foot ceilings, use 30°-40° beams. For 28+ foot ceilings, specify 25°-35° beams. These narrow angles concentrate light downward, preventing it from spreading and weakening before reaching the floor. Always verify with photometric calculations that floor-level illumination meets code requirements.

6. Does beam angle affect LED strip brightness or lumens?

Beam angle doesn't change lumen output—a 1,000-lumen LED strip produces 1,000 lumens regardless of beam angle. However, beam angle dramatically affects perceived brightness (intensity). Narrow beams concentrate those lumens into a smaller area, creating higher intensity measured in candelas. Wide beams spread lumens across larger areas, reducing intensity but increasing coverage. Same total lumens, different distribution patterns.

7. What is field angle and when does it matter?

Field angle measures the cone of light where intensity remains above 10% of peak, extending beyond the beam angle (50% intensity point). Field angle matters for uniform ambient lighting because it includes useful spill light that prevents harsh transitions between bright and dark zones. When calculating fixture spacing for even illumination, design around field angle rather than beam angle to avoid dark spots between fixtures.

8. How does beam angle differ between COB and SMD LED strips?

COB strips naturally produce wider, more uniform beam patterns (120°-180°) because the continuous light-emitting surface eliminates individual point sources. SMD strips show distinct beam patterns from each chip, creating potential hotspots. COB excels at wide, uniform distribution; SMD with secondary optics achieves tighter beam control (30°-60°) for focused applications. Both can work in the 60°-90° medium range with appropriate accessories.

9. What is the NEMA classification system for beam angles?

NEMA (National Electrical Manufacturers Association) standardized beam angles into seven types: Type 1 (10°-18°, very narrow), Type 2 (18°-29°, narrow), Type 3 (29°-46°, medium narrow), Type 4 (46°-70°, medium), Type 5 (70°-100°, medium wide), Type 6 (100°-130°, wide), Type 7 (130°+, very wide). This classification system simplifies specifications and ensures consistent communication across manufacturers and designers.

10. How do aluminum channels affect beam angle distribution?

Aluminum channels with diffusers modify effective beam angles by scattering and redirecting light. A frosted diffuser typically widens the beam by 10-20° while improving uniformity and reducing hotspots. Clear diffusers maintain beam angle but protect the LED strip. Angled channels (45°) redirect light for wall washing without changing the inherent beam angle. Expect 10-20% light loss through any diffuser material.

Conclusion

Beam angle, field angle, and viewing angle represent distinct specifications that serve different purposes in LED technology. Beam angle controls light distribution from fixtures, field angle defines extended coverage zones, and viewing angle applies exclusively to LED displays and screens. Confusing these terms leads to specification errors and project failures.

For commercial LED strip projects, beam angle selection starts with three critical parameters: ceiling height, application type, and required illumination levels. Calculate coverage using the beam spread formula, verify spacing with the spacing criterion equation, and confirm intensity meets code requirements. Document your analysis to defend specifications against value engineering attempts.

The most expensive mistake isn't selecting the wrong beam angle—it's failing to specify beam angle at all and discovering the problem after installation. Request IES files, verify photometric data, and use lighting design software for projects over 100 fixtures or $25,000 in material costs.

Start your next project by measuring ceiling height and defining application requirements. Match those parameters to appropriate beam angle ranges using the guidelines in this article. For custom commercial installations requiring specialized beam angles, photometric analysis, or technical specifications, contact our team for LED strip solutions backed by certified test data and professional design support.
