Understanding Efficacy vs. Efficiency in Lighting

Commercial lighting buyers regularly encounter two terms on specification sheets that appear similar but measure fundamentally different aspects of performance. The confusion between efficacy and efficiency leads to costly purchasing mistakes—specifiers might select what appears to be a high-performing LED fixture based on impressive efficacy numbers, only to discover that poor fixture design wastes much of that potential.

Understanding the distinction between these measurements is necessary for evaluating true lighting performance and calculating accurate return on investment. This guide provides clear definitions, calculation methods, and a practical framework for making informed commercial lighting decisions.

Luminous efficacy measures how many lumens a light source produces per watt of electrical power, expressed as lm/W. Lighting efficiency measures the percentage of source light that actually exits the fixture after accounting for losses from reflectors, diffusers, and housing design.

What Is Luminous Efficacy?

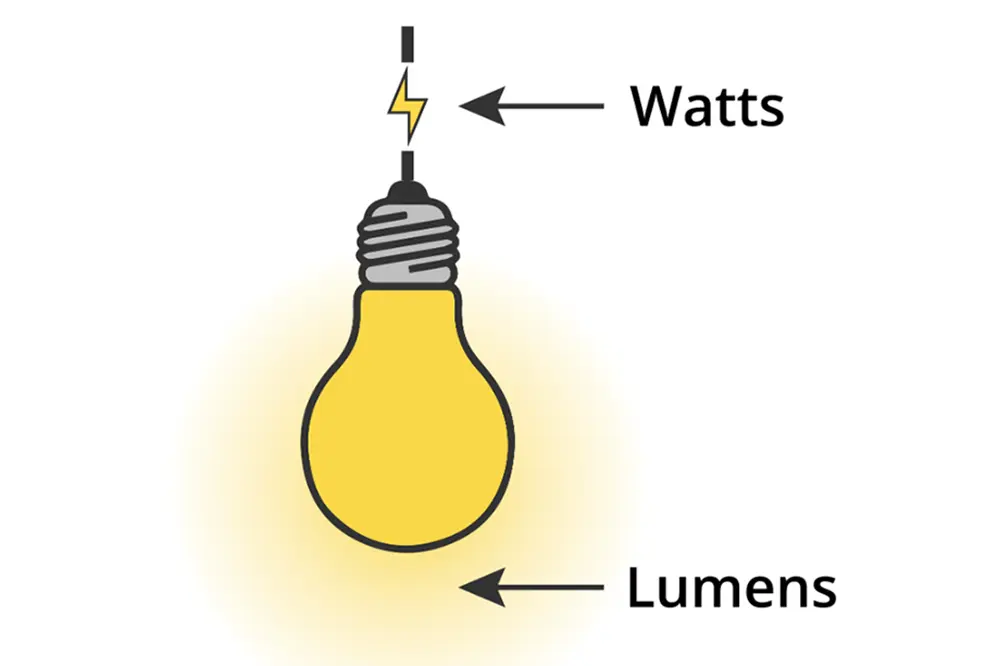

Luminous efficacy is a source-level metric that quantifies how effectively a light source converts electrical energy into visible light. The measurement expresses output in lumens per watt (lm/W), providing a direct indicator of energy efficiency at the lamp or LED chip level.

The formula is straightforward: Efficacy = Lumens ÷ Watts

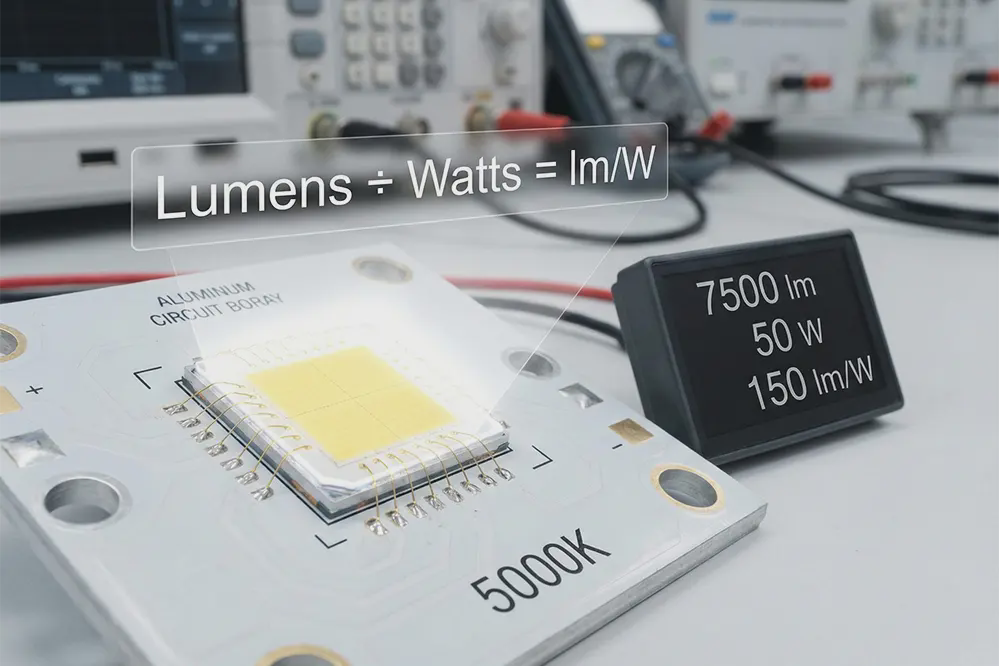

A practical example clarifies this calculation. An LED module produces 7,500 lumens while consuming 50 watts of electrical power. Dividing 7,500 by 50 yields an efficacy of 150 lm/W. This number tells you exactly how much visible light you receive for each watt of electricity consumed.

Efficacy matters because it directly impacts operating costs. Higher efficacy means more light output per unit of energy consumed, which translates to lower electricity bills. In a facility operating hundreds of fixtures for 4,000+ hours annually, the difference between 100 lm/W and 150 lm/W represents substantial energy savings.

Modern high-quality LED fixtures typically achieve 100 to 180 lm/W depending on color temperature and CRI requirements. The theoretical maximum efficacy for visible light is 683 lm/W for monochromatic green light at 555 nanometers, though practical white-light sources never approach this limit.

What Is Lighting Efficiency?

Lighting efficiency operates at the system level, measuring how much of the light generated by a source actually exits the fixture and becomes available for illumination. This metric accounts for all the light lost to absorption, reflection, and scattering within the fixture housing, reflectors, and diffusers.

The calculation expresses efficiency as a percentage: Efficiency = (Fixture Lumens ÷ Source Lumens) × 100

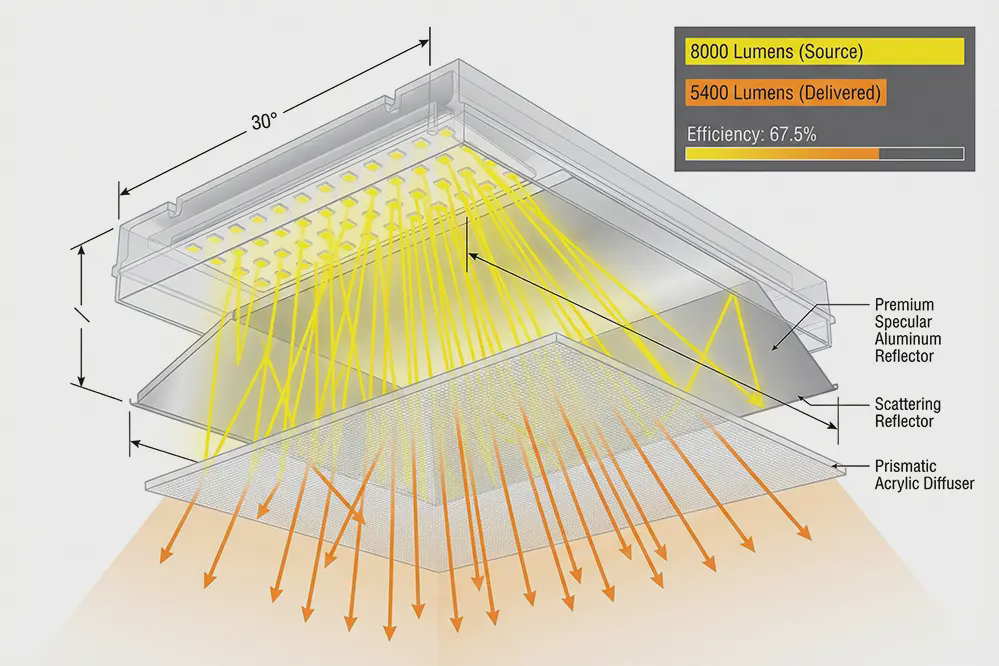

Consider an LED array that produces 8,000 lumens when measured as a bare source. Once installed in a fixture with reflectors, diffusers, and housing, the actual light output measured from the complete assembly drops to 5,400 lumens. This fixture operates at 67.5% efficiency, meaning 32.5% of the source light never reaches the intended space.

Fixtures trap light through several mechanisms. Reflectors absorb some light even as they redirect the rest. Diffusers scatter light to reduce glare, but lower-quality diffusers can block 20-40% of the source output. Housing design matters too; deep recessed fixtures with narrow apertures naturally restrict how much light escapes. Poor thermal management compounds these losses because excessive heat degrades optical components over time.

The difference between 65% efficiency and 90% efficiency represents a 38% increase in usable light delivery from the same source. In practical terms, a facility might need 100 fixtures at 65% efficiency to achieve the same illumination as 72 fixtures at 90% efficiency.

The Critical Difference Between Efficacy and Efficiency

Efficacy measures performance at the light source level—the LED chip, the fluorescent lamp, or the incandescent filament. It tells you how well that component converts electricity into visible light before any fixture is involved. Efficiency measures performance at the complete system level after the source is installed in its housing with all optical components in place.

This distinction matters because you can waste an excellent high-efficacy source with a poorly designed fixture. Both metrics must work together to deliver cost-effective illumination.

The industry sometimes muddles this distinction by expressing both metrics as lumens per watt. When you see "fixture efficacy" on a spec sheet, that typically represents the total system output divided by total system wattage—it already incorporates efficiency losses. "Source efficacy" refers only to the bare lamp or LED array performance before fixture losses.

A fixture claiming 140 lm/W source efficacy but only delivering 90 lm/W fixture efficacy has a 64% efficiency rating—nearly a third of the source light is lost to fixture design. Another product might list 120 lm/W source efficacy while delivering 110 lm/W fixture efficacy, representing 92% efficiency. The second fixture delivers more usable light despite the lower source efficacy.

How to Calculate Lighting Efficacy

Calculating efficacy requires two pieces of information from the fixture specification sheet: total lumen output and total power consumption. The challenge is ensuring you're comparing equivalent values.

Step 1: Locate the lumen output, typically listed as "luminous flux" or "total fixture lumens." Make sure you're looking at delivered lumens (what exits the fixture) rather than source lumens.

Step 2: Find the total power consumption. This should include all electrical loads: the LED array or lamp itself, plus the driver or ballast, plus any control electronics.

Step 3: Divide lumens by watts to get efficacy in lm/W.

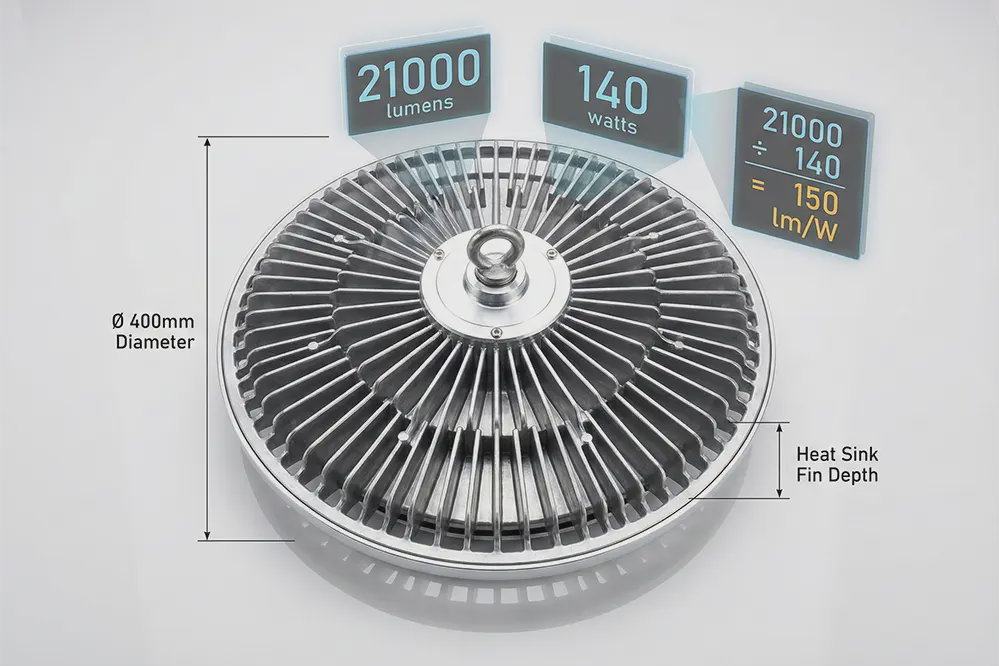

Worked Example: An LED high-bay fixture lists 21,000 delivered lumens and 140 watts total system power. The calculation is 21,000 ÷ 140 = 150 lm/W fixture efficacy.

Context matters for interpreting these numbers. Different technologies have vastly different efficacy ranges: incandescent 10-17 lm/W, fluorescent 50-90 lm/W, consumer LED 80-120 lm/W, commercial LED 120-150 lm/W, and premium LED 150-200 lm/W.

Modern commercial LED fixtures purchased in 2026 should demonstrate minimum 100 lm/W efficacy at the fixture level. Target 120 lm/W or higher for new construction or major retrofit projects.

How to Calculate Lighting Efficiency

Efficiency calculations require knowing both the source output (bare lamp lumens) and the fixture output (delivered lumens after optical losses).

Step 1: Identify the source lumen output, often listed as "bare LED lumens" or "lamp lumens."

Step 2: Identify the fixture lumen output, typically listed as "fixture lumens" or "delivered lumens."

Step 3: Divide fixture lumens by source lumens and multiply by 100 to get efficiency percentage.

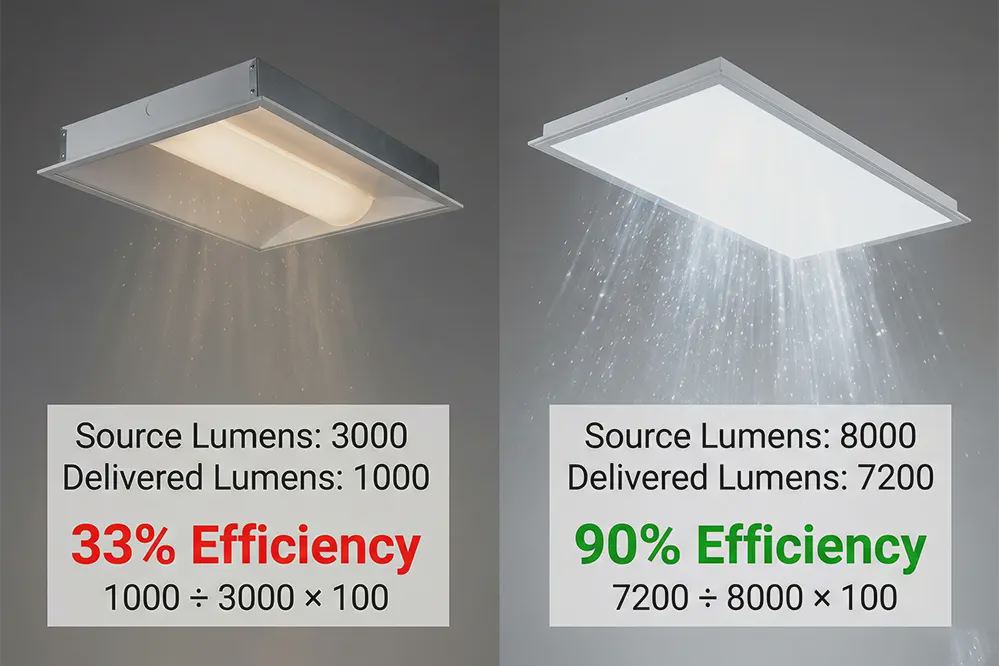

Example 1: A recessed troffer uses lamps rated for 3,000 source lumens. The complete fixture delivers only 1,000 lumens. Efficiency is (1,000 ÷ 3,000) × 100 = 33%. This fixture loses two-thirds of the available light—extremely poor performance.

Example 2: An LED panel fixture uses arrays producing 8,000 source lumens. The complete fixture delivers 7,200 lumens. Efficiency is (7,200 ÷ 8,000) × 100 = 90%, representing excellent optical design.

Several factors reduce fixture efficiency. Reflector surfaces absorb light even while redirecting it; cheaper painted reflectors typically perform worse than anodized aluminum or specular finishes. Diffuser materials vary dramatically—acrylic diffusers might transmit 85-92% of incident light while lower-quality polycarbonate diffusers absorb 30-40%. Housing geometry matters; fixtures with convoluted light paths lose more to multiple reflections.

Target 80% or higher efficiency for commercial applications. Premium fixtures achieve 85-92% efficiency through optimized optical design and high-quality materials.

Why Both Metrics Matter for Commercial Buyers

Source efficacy and fixture efficiency interact multiplicatively to determine actual cost performance. High numbers in one area cannot compensate for poor performance in the other.

Consider a real-world scenario. Fixture A uses LED arrays rated at 150 lm/W source efficacy but incorporates poor optical design resulting in 60% fixture efficiency. The effective performance is 150 × 0.60 = 90 lm/W delivered to the space.

Fixture B uses LEDs rated at 110 lm/W source efficacy but employs excellent optical design achieving 90% fixture efficiency. The effective performance is 110 × 0.90 = 99 lm/W delivered to the space—10% better than Fixture A despite lower source efficacy.

This 10% difference compounds dramatically across thousands of operating hours. A facility installing 200 fixtures operating 4,000 hours annually at $0.12 per kWh sees the difference translate to roughly $2,400 in annual energy savings, or $24,000 over a 10-year operating period.

Total cost of ownership calculations must account for both metrics. Always request fixture-level efficacy figures that already incorporate efficiency losses, or calculate them yourself using source and fixture lumen values.

Modern LED Performance Benchmarks

LED technology advanced significantly between 2015 and 2026, with commercially available products nearly doubling in efficacy while simultaneously improving color quality. Understanding current performance benchmarks helps identify whether quoted specifications represent modern technology or outdated products.

For source efficacy, consumer-grade LED products in 2026 typically achieve 100-120 lm/W. Commercial-grade LED fixtures designed for professional installations range from 120-150 lm/W for standard applications, with premium products reaching 150-180 lm/W.

Color temperature affects efficacy measurably. Warm white LEDs (2700-3000K) typically produce 5-15% fewer lumens per watt than cool white LEDs (5000-6500K) because achieving warm colors requires additional phosphor layers that absorb some light energy.

Color Rendering Index (CRI) creates another trade-off. Standard CRI 80 LEDs achieve the highest efficacy. Increasing to CRI 90 typically reduces efficacy by 10-15%, while CRI 95+ products may sacrifice 15-20% efficacy. Commercial spaces generally specify CRI 80-85 for offices and warehouses, CRI 90+ for retail and hospitality where accurate color perception matters.

For fixture efficiency, target minimum 75% for acceptable performance, 85% for good performance, and 90%+ for excellent performance. LED's directional emission pattern inherently produces less fixture loss than omnidirectional fluorescent or HID sources.

Application-Specific Selection Guide

Different commercial environments require different priorities when balancing efficacy, efficiency, and other performance factors.

Warehouses and industrial facilities prioritize maximum efficacy to minimize operating costs across large spaces. Target 120+ lm/W fixture efficacy minimum, with 140+ lm/W preferred for high-bay applications. Fixture efficiency of 75% is acceptable. CRI 70-80 suffices for most industrial applications where color accuracy isn't critical.

Office and commercial spaces require balanced performance. Target 100+ lm/W fixture efficacy with 80%+ fixture efficiency. CRI 80-90 provides acceptable color rendering for computer work and general tasks. Office spaces benefit from higher fixture efficiency because better optical control improves visual comfort through reduced glare.

Retail and hospitality environments often prioritize fixture efficiency and color quality over maximum efficacy. Target 90+ lm/W minimum fixture efficacy, 85%+ fixture efficiency, and CRI 90+ for merchandise display. Clothing retailers particularly benefit from high-CRI lighting that shows fabric colors accurately.

Healthcare and food service spaces require high CRI for safety and hygiene reasons. Target 80+ lm/W minimum fixture efficacy with CRI 90+. Medical examination rooms, surgical suites, and food preparation areas all benefit from accurate color perception.

Common Specification Mistakes

Commercial lighting buyers regularly make preventable errors when evaluating products.

Mistake 1: Assuming high source efficacy guarantees good performance. Source-level specifications can be impressive while the complete fixture delivers mediocre results. A 170 lm/W LED chip installed in a housing with 55% efficiency delivers only 93.5 lm/W to the space. Always verify fixture-level performance metrics.

Mistake 2: Ignoring fixture efficiency ratings. Many specification sheets simply don't list efficiency because it highlights design shortcomings. Ask manufacturers to provide both source lumens and fixture lumens so you can calculate efficiency yourself.

Mistake 3: Not accounting for driver and ballast losses. Some manufacturers list LED wattage without including the power consumed by drivers or control electronics. Specification sheets should list "total system watts."

Mistake 4: Comparing incompatible metrics. Buyers sometimes compare source efficacy from one manufacturer against fixture efficacy from another. Source efficacy will always appear 10-40% higher than fixture efficacy for the same product.

Mistake 5: Overlooking thermal management. Fixtures with inadequate thermal management experience efficacy degradation over time. After 10,000 hours, a poorly cooled LED fixture might deliver 20-30% less light than when new. Ask about L70 ratings (hours until output drops to 70% of initial).

How to Read and Compare Spec Sheets

Manufacturers organize technical specifications differently, which complicates direct comparisons. Learning to locate key information prevents specification errors.

Look for "fixture efficacy" or "system efficacy" expressed as lm/W. This represents total performance including all losses and should be your primary comparison metric. If the specification only lists "source efficacy," you're missing critical information.

Fixture efficiency appears less consistently. Look for "fixture efficiency" expressed as a percentage, or "Light Output Ratio (LOR)" which means the same thing. If these aren't listed, look for both "source lumens" and "fixture lumens" so you can calculate efficiency yourself.

Red flags include heavy use of "up to" qualifiers—"up to 150 lm/W" often means best-case laboratory conditions. Be skeptical of claims that dramatically exceed industry norms. Missing thermal management specifications suggest the manufacturer hasn't adequately addressed LED longevity.

Questions to ask suppliers before purchasing:

1. What is the fixture-level efficacy including all driver/ballast losses?

2. What percentage of source lumens does the fixture deliver (efficiency)?

3. Are these values from LM-79 testing or manufacturer estimates?

4. What is the L70 rating and at what operating temperature?

Third-party certifications provide independent verification. DesignLights Consortium (DLC) maintains a qualified products list for commercial LED fixtures meeting minimum performance standards. Energy Star certification verifies energy efficiency claims. LM-79 testing is the industry standard for measuring LED fixture performance.

FAQ

What is a good efficacy rating for commercial LED fixtures?

Target minimum 100 lm/W fixture efficacy for general commercial applications in 2026. Office and retail spaces should specify 100-120 lm/W. Industrial and warehouse high-bay fixtures should target 120-150 lm/W or higher. Products below 90 lm/W represent either outdated technology or specialized applications.

Can a fixture have high efficiency but low efficacy?

Yes, though uncommon. A fixture could achieve 90% efficiency (excellent optical design) while using low-efficacy 60 lm/W sources, resulting in only 54 lm/W delivered performance. This typically occurs with specialized lighting where other requirements limit source selection.

How does dimming affect efficacy and efficiency?

LED efficacy typically improves slightly at reduced output levels—an LED operating at 50% power might achieve 5-10% higher efficacy because junction temperatures decrease. Fixture efficiency remains essentially constant across dimming range since the optical system doesn't change.

What efficacy should I expect from LED strip lights?

Consumer-grade decorative strips typically achieve 40-70 lm/W. Mid-tier architectural strips range 70-100 lm/W. High-performance strips designed for task lighting can reach 120-140 lm/W. Professional-grade linear fixtures typically deliver 100-130 lm/W at the fixture level.

Does higher efficacy always mean lower energy costs?

Generally yes, but other factors complicate the relationship. If poor fixture efficiency wastes that high-efficacy source, the cost advantage disappears. Calculate total cost of ownership including energy, maintenance, and replacement costs over the expected service life.

How do fixture optics impact efficiency?

Optics are the primary factor determining fixture efficiency. Reflector surface quality dramatically affects performance—cheap painted reflectors might achieve 60-70% reflectivity, while premium specular aluminum achieves 90-95%. Diffuser materials vary widely, with low-quality diffusers blocking 30-50% of light while premium acrylic transmits 90-92%.

Conclusion

Commercial lighting purchasing decisions require understanding both luminous efficacy and lighting efficiency to evaluate true product performance and calculate accurate return on investment. Efficacy quantifies how well a source converts electricity into light, while efficiency measures how well a fixture delivers that light to the intended space.

For modern LED fixtures in 2026, target minimum 100 lm/W fixture-level efficacy for office and retail applications, 120 lm/W for industrial environments, and 140+ lm/W for large-scale high-bay installations. Simultaneously require 80% or higher fixture efficiency to ensure that high source efficacy translates into delivered performance.

The relationship between these metrics is multiplicative. Calculate effective performance by multiplying source efficacy by fixture efficiency—a 140 lm/W source with 65% efficiency delivers only 91 lm/W effective performance, worse than a 110 lm/W source with 90% efficiency delivering 99 lm/W.

When evaluating specifications, always request both fixture-level efficacy figures and fixture efficiency percentages. Verify that performance claims reference independent LM-79 testing rather than manufacturer estimates. Check for DLC or Energy Star certification as independent validation.

Your next lighting RFP should explicitly require vendors to provide both metrics in their technical submittals. Specify minimum acceptable thresholds for your application. This framework protects against specification gaming where manufacturers emphasize favorable metrics while obscuring performance limitations.
