Unveiling the Technology: What is an SMD LED?

You are here: Home » Blog
SMD LED

Table of Contents

In the world of lighting, there’s a technology that has revolutionized the way we illuminate our spaces – the SMD LED. But what exactly is an SMD LED? If you’re a lighting enthusiast or a professional in the industry, you’ve probably come across this term before. In this blog post, we’ll delve into the fascinating world of SMD LEDs, unraveling their secrets and shedding light on their incredible capabilities.

So, what does SMD stand for in LED lights? SMD stands for Surface Mount Device, and it refers to the way these LEDs are mounted onto a circuit board. Unlike traditional LEDs, which are mounted through holes in the board, SMD LEDs are soldered directly onto the surface. This unique design allows for a more compact and efficient lighting solution, making them a popular choice in various applications.

Now that we’ve covered the basics, let me introduce myself. I’m Tom, and I’ve been immersed in the LED lighting industry since 2005. Over the years, I’ve gained extensive knowledge and expertise in LED technology, and I’m excited to share my insights with you in this blog post. With meticulous research and a passion for staying up-to-date with the latest advancements, I’ve crafted this article to provide you with a comprehensive understanding of SMD LEDs.

So, are you ready to dive right in? In the following sections, we’ll explore the key features of SMD LEDs, discuss their advantages over traditional LEDs, and delve into the differences between SMD and LED technologies. Whether you’re a lighting professional seeking to expand your knowledge or simply a curious enthusiast, this blog post will equip you with the information you need to navigate the world of SMD LEDs with confidence. Let’s embark on this illuminating journey together!

The Basics of LED Technology

LED-Polarity

At the fundamental level, LED stands for Light Emitting Diode, a type of solid-state lighting that uses a semiconductor to convert electricity into light. When voltage is applied across the diode, electrons recombine with holes in the material, releasing energy in the form of photons—this process is known as electroluminescence. Unlike traditional incandescent bulbs that generate light through the heating of a filament, LEDs achieve illumination without significant heat production, leading to greater energy efficiency and longer lifespans.

Defining LED and Its Advantages

LEDs, or Light Emitting Diodes, are highly efficient solid-state lighting devices that convert electrical energy directly into light with minimal heat generation. This efficiency results in significantly reduced energy consumption and cost savings.

Given their solid-state nature, LEDs offer enhanced durability and lifespan compared to traditional lighting technologies, typically exceeding 50,000 hours of operation. This translates into reduced maintenance and replacement costs.

LEDs have a quick response time, lighting up almost instantaneously compared to legacy lighting.

Beyond efficiency and lifespan, LEDs provide exceptional design flexibility. They can be produced in a range of colors and shapes, allowing for dynamic lighting solutions. Moreover, LEDs are eco-friendly, containing no hazardous materials and offering greater recyclability.

Evolution of LEDs in Lighting

LED technology has profoundly revolutionized the lighting industry since its inception. Light Emitting Diodes (LEDs) have transitioned from low-power indicator lights to primary sources of illumination in countless applications, enabling innovations in form factors and function that have reshaped our expectations of lighting itself.

From the early use in electronic devices to advanced lighting systems, LEDs have continuously evolved. Advancements in LED technology, such as increased lumens per watt, have led to far greater energy efficiencies and a subsequently lower carbon footprint, firmly establishing LEDs as a lighting technology for a sustainable future.

Today, the integration of LEDs in smart home technology is an emblem of the innovation these diodes have driven. The microchip-based nature of LEDs facilitates connectivity and control, enhancing user interface experiences, and allowing tailored environmental responses within automated systems.

With each passing year, developments in LED technology continue to push the boundaries of what is possible. Incremental but significant strides, such as in the field of Solid-State Lighting (SSL), have expanded LED’s efficacy, color quality, and thermal management, ensuring progress towards even more sophisticated applications.

LED lighting solutions now dominate the industry, with SMD LEDs symbolizing a leap forward in miniaturization and versatility. Their widespread adaptation attests to the ever-evolving nature of LED technology, a journey that illustrates an ongoing quest for superior and sustainable lighting solutions.

Introduction to SMD LEDs

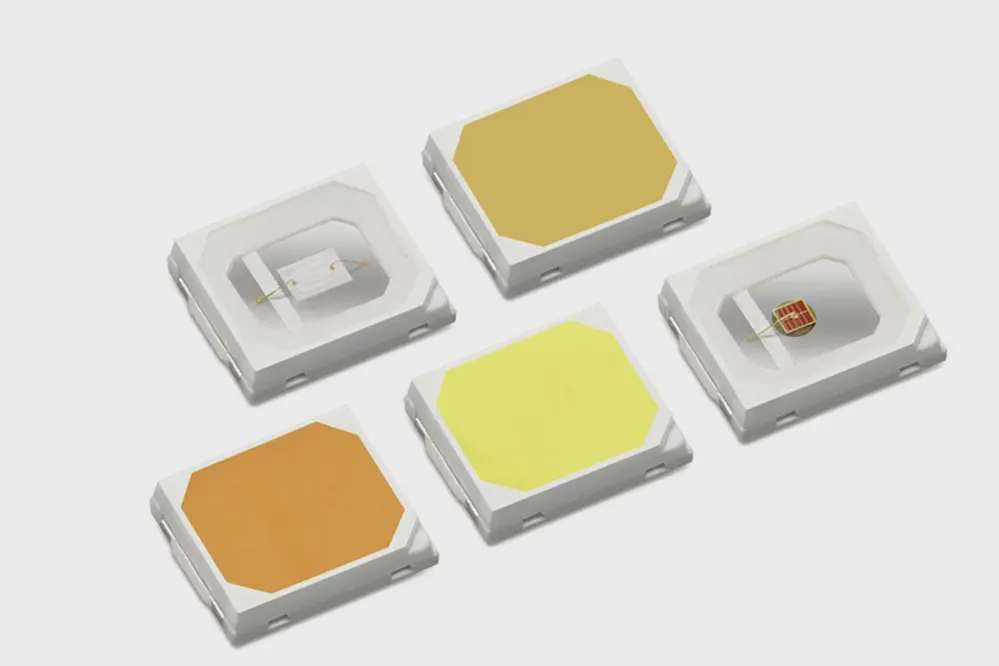

SMD LEDs

In the diverse ecosystem of lighting technologies, Surface-Mounted Device (SMD) LEDs represent a significant evolution in design and functionality. Differentiating themselves from traditional LED formats, SMD LEDs are renowned for their remarkable compactness and higher integration capability. These attributes stem from their unique construction, where LED chips are directly mounted onto the surface of printed circuit boards (PCBs). This architectural refinement not only enables a diminutive form factor but also facilitates enhanced performance characteristics such as improved heat dissipation and increased light output, making SMD LEDs a preferred choice for multifaceted lighting applications.

Anatomy of SMD LED Components

SMD LEDs are distinguishable by their encapsulated packages, each housing an LED chip, mounting substrate, and built-in reflector that directs light efficiently. This integration results in a compact form factor that is highly versatile for a range of applications. The package additionally includes an embedded heat sink to manage thermal performance, which is crucial for maintaining the LED’s longevity and reliability.

Each SMD LED component is soldered onto the PCB, ensuring a secure and conductive connection. This precision alignment facilitates the efficient distribution of electrical current throughout the device. The surface-mount technology underpinning SMD LEDs is also designed to support automated assembly processes, which significantly increases production efficiency and consistency.

Internally, the LED chip is the primary light-emitting element, encapsulated within a phosphor coating that converts blue light into the desired color spectrum. The chip’s make-up comprises layers of semiconductor materials that create electroluminescence when energized, thus generating light.

The external leads are critical for providing electrical contact and access to the LED circuitry. These leads are often gold-plated to ensure maximum conductivity and resistance to oxidation or corrosion, factors that might otherwise degrade performance over time.

In addition to the chip and leads, an encapsulating lens is typically applied over the SMD LED. This lens is engineered to optimize light dispersion and protect the delicate internal components from physical damage and environmental factors such as moisture or dust ingress.

Finally, the distinctiveness of SMD LEDs lies in their scalable array configurations. Units can be grouped to form larger panels or strips, offering vast potential for lighting designers to craft both functional and aesthetic lighting scenes. The adaptability of SMD LEDs positions them as an indispensable component in the constantly innovating field of illumination technology.

Benefits of SMD Design

SMD LEDs exhibit remarkably high luminous efficiency, making them superior choices for energy-conscious applications. Their compact footprint allows for more granular control over the light distribution, presenting unparalleled versatility in lighting design. With their high component integration level, SMD LEDs deliver consistent illumination with less wasted energy.

Manufacturers also favor SMD technology due to its suitability for automated production processes, which enhances scalability. Automated placement machines can rapidly mount these components onto circuit boards, resulting in greater precision, speed, and reduced manufacturing costs. This efficiency ultimately leads to more cost-effective products for consumers.

Moreover, the thermal management of SMD LEDs is notably advanced compared to their through-hole counterparts. With a larger surface area relative to their size, these LEDs dissipate heat more effectively, contributing to a longer lifespan and sustained performance. The lower operating temperatures also mean they are safer to handle and use in diverse environments.

Furthermore, SMD LEDs are celebrated for their exceptional color rendering capabilities. They are capable of creating almost any color in the spectrum, including white light with high color rendering index (CRI) values. This makes them ideal for applications where accurate color representation is vital, such as in retail or art gallery settings.

In terms of durability, SMD LEDs are highly resistant to shock and vibration due to their small size and solid-state construction. This resilience makes them eminently suitable for applications in traffic signals, automotive lighting, and portable electronics, where robustness and reliability are paramount.

Comparing SMD LEDs and Traditional LEDs

In the realm of illumination technology, the distinction between SMD (Surface-Mounted Device) LEDs and traditional LEDs (Light-Emitting Diodes) is striking. SMD LEDs offer a more compact form factor and are directly mounted onto the surface of a circuit board, ensuring enhanced space optimization and integration flexibility. Their high-density assembly leads to improved luminous efficacy and allows for the creation of sleeker, more innovative lighting solutions. Conversely, traditional LEDs, often known as through-hole LEDs, are characterized by leads that are inserted into drilled holes on a circuit board and soldered in place, a design that generally yields a less efficient use of space and limits design versatility.

Brightness and Energy Efficiency

SMD LEDs are renowned for their superior luminous efficacy, which translates to brighter output per unit of electrical power consumed.

  1. High Luminous Efficacy: SMD LEDs typically have higher efficacy, offering more lumens per watt, thus providing greater brightness with less energy.
  2. Less Heat Generation: With better efficacy comes reduced heat output, enabling more efficient energy use and longer-lasting performance.
  3. Design Flexibility: Higher brightness levels do not require proportionally larger SMD LEDs, allowing for versatile designs without compromising on luminosity.
  4. Consistency: The advanced manufacturing of SMD LEDs ensures uniform brightness across different units, contributing to consistent lighting quality.
  5. Dimmability: Advanced SMD technology can support smooth dimming, which reduces energy consumption while maintaining the desired ambiance.Their compact size maximizes heat dissipation, contributing to lower energy consumption and extended lifespan.

Despite their immense brightness, SMD LEDs maintain exceptional energy efficiency, making them pivotal in sustainable lighting design.

Physical Size and Versatility

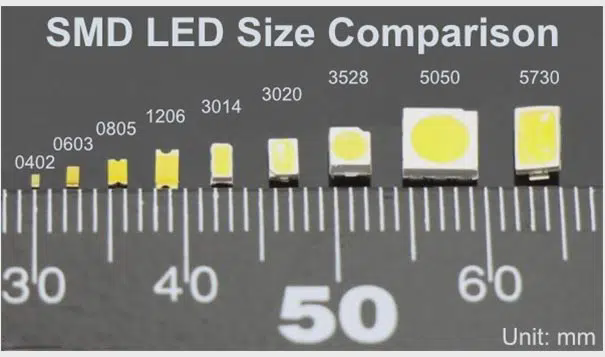

SMD LEDs’ diminutive form factors have revolutionized the design of lighting fixtures, enabling unprecedented miniaturization without sacrificing performance. They offer tremendous design freedom and adaptability.

These components can be mounted with high density on PCBs, creating intense luminosity from compact sources.

Given their compact size, SMD LEDs facilitate sleek, innovative fixture designs across various applications such as automotive headlights, smartphone screens, and intricate architectural lighting. They embed seamlessly into modern technology, merging into the aesthetics of devices.

The small footprint of SMD LEDs belies their mighty impact on lighting solutions, embodying a quintessence of efficiency and versatility. The reduced space requirement allows for creative assemblies that can blend into or accentuate architectural elements. This inherent flexibility makes SMD LEDs the cornerstone of modern lighting design and a stalwart in advancing the frontiers of illumination technology.

Practical Applications of SMD LEDs

SMD LED Strip-Unitop

SMD LEDs, due to their minute dimensions and high-luminosity capabilities, are integral in space-constrained environments like under-cabinet lighting, where they furnish vibrant, unobtrusive illumination. They also excel in backlighting applications for LCD displays, infusing devices with crisp, homogenous light. SMD LEDs are one of the best choice for flexible LED strip lights and LED neon strips.

Their robust performance and diminutive scale render SMD LEDs ideal for wearable technology, often operating as signal indicators that harmoniously integrate form and function within compact electronic ecosystems.

Adaptability in Consumer Products

The integration of SMD LEDs into consumer products has revolutionized the design and functionality of these items, enhancing user experience through improved aesthetics and performance.

  1. Smartphones and Tablets: SMD LEDs are crucial for backlighting screens, enabling slim designs and vibrant displays.
  2. Wearable Technology: They allow for compact, efficient lighting in devices like fitness trackers and smartwatches.
  3. Home Automation: SMD LEDs are employed in smart bulbs and fixtures, facilitating color tuning and energy savings.
  4. Automotive Industry: Used in dashboard illumination and external lighting, they contribute to safety and energy efficiency in vehicles.
  5. Gaming and Entertainment: Key components in gaming consoles and peripherals, SMD LEDs create immersive user interfaces and enhance the gaming experience.Through miniaturization, SMD LEDs enable the design of sleeker, more portable devices without compromising on light quality or battery life.

Moreover, SMD LEDs’ broad color spectrum capacity allows for personalized and dynamic lighting scenarios in a multitude of consumer products.

SMD LED Use in Professional Settings

SMD LEDs have revolutionized lighting in professional environments, enabling high efficiency, excellent brightness control, and a reduced physical footprint for various applications. Their compact size and high luminous efficacy make them ideal for detailed task lighting in technical workplaces.

They are primarily integrated into architectural lighting schemes due to their flexibility and uniform light distribution. In commercial settings, SMD LEDs provide bright, consistent illumination, essential for product displays and workspaces.

Moreover, SMD LEDs are harnessed in medical equipment for their reliable, adjustable intensity, which aids in precise diagnostics and surgeries. Their minimal heat emission makes them preferable for sensitive environments where maintaining temperature control is critical.

Their directional light output is particularly advantageous in photography and videography, where control over lighting conditions is paramount. Professional lighting designers favor SMD LEDs for their ability to craft lightscapes that accentuate textures and colors in a scene.

In broadcast environments, these LEDs are a mainstay for studio lighting, helping to reduce glare and shadows on camera while providing adjustable color temperatures. The versatility of SMD LEDs ensures broadcast quality is upheld with meticulous light management.

Finally, SMD LEDs serve as efficient solutions in horticultural practices, with specialized spectra to promote plant growth, underlining their adaptability to specialized professional needs. Their performance and longevity continue to influence innovations in industry-specific lighting applications.

FAQs

What does SMD stand for in LED lights?

SMD in lighting parlance is an acronym for Surface-Mounted Device.

How do SMD LEDs work?

  1. SMD LEDs (Surface Mount Device LEDs) work by using a small semiconductor chip that emits light when an electric current passes through it.
  2. The semiconductor chip is made of different layers of materials, including a p-n junction. When electrons and holes recombine at the p-n junction, energy is released in the form of light.
  3. These LEDs are mounted directly onto a circuit board using surface mount technology, allowing for a compact and efficient design.
  4. SMD LEDs are more energy-efficient than traditional LEDs because they have a higher light output with a lower power consumption.
  5. These LEDs can produce a wide range of colors by using different materials for the semiconductor layers.
  6. SMD LEDs have a higher brightness and can provide better color uniformity compared to other types of LEDs.

Why choose SMD LEDs?

SMD LEDs, or Surface Mount Device LEDs, offer several advantages that make them a popular choice among lighting enthusiasts and professionals.

Firstly, SMD LEDs are known for their compact size and design. They are smaller and thinner than traditional LEDs, allowing for easy integration into various lighting fixtures and applications. This makes them particularly useful for applications where space is limited, such as in portable electronic devices or architectural lighting installations.

Secondly, SMD LEDs provide excellent energy efficiency. They consume less power and produce brighter light compared to traditional LEDs, resulting in lower energy consumption and cost savings. This is beneficial for both residential and commercial lighting applications, where energy efficiency is a priority.

Furthermore, SMD LEDs offer improved heat dissipation properties. The design of these LEDs allows for better heat dissipation, which helps to prolong the lifespan of the LED and maintain its performance over time. This is important in applications where the lights are constantly on or subject to high-temperature environments.

Lastly, SMD LEDs offer a wide range of color options and brightness levels. With advancements in technology, SMD LEDs now come in a variety of colors and can be easily controlled to achieve different lighting effects. This versatility makes them suitable for a wide range of applications, from ambient lighting to decorative lighting purposes.

In summary, SMD LEDs are a popular choice due to their compact size, energy efficiency, improved heat dissipation, and versatility in color and brightness options. These features make them an excellent choice for both residential and commercial lighting applications.

What is the difference between SMD and LED?

LED, or Light Emitting Diode, refers to the technology behind light production in a broad sense. SMD, on the other hand, denotes a particular assembling method applied to LEDs, where the LED chips are mounted onto a circuit board’s surface. Consequently, SMD LEDs are just one typology within the expansive family of LED technologies. They are distinguished not by light emission per se, but by their physical construction and assembly.

Why choose SMD LEDs over other LED types?

Considering SMD LEDs for your projects is sensible – as they offer high luminous efficacy, a broad array of color temperatures, and a compact form factor suitable for diverse applications – from intricate electronic devices to expansive lighting arrays in photography studios.

What is the difference between SMD and DIP LED?

SMD (Surface Mount Device) and DIP (Dual In-line Package) are two different types of LED (Light-Emitting Diode) packaging technologies.

SMD LEDs are smaller and more compact compared to DIP LEDs. They are mounted directly onto a circuit board, making them ideal for applications where space is limited. The SMD LEDs have three main components: a semiconductor chip, a reflector, and a lens. The reflector and lens help in directing the light emitted by the chip and enhancing its brightness. SMD LEDs are commonly used in applications such as mobile devices, LCD displays, and automotive lighting.

On the other hand, DIP LEDs are larger and have two leads that are inserted into holes on a circuit board. These LEDs are often used in applications where high-power output is required, such as outdoor signage and decorative lighting. DIP LEDs are known for their robustness and durability. They are also easier to solder and replace compared to SMD LEDs.

In summary, the main difference between SMD and DIP LEDs lies in their size, mounting method, and application. SMD LEDs are smaller, surface-mounted, and suitable for compact spaces, while DIP LEDs are larger, through-hole mounted, and commonly used for high-power applications.

Which is better SMD or COB LED?

SMD and COB LED are both popular options in the lighting industry, but they have some key differences that make one more suitable than the other depending on the application.

SMD, or Surface Mount Device, LEDs are smaller and more versatile. They are made up of multiple individual diodes mounted on a circuit board. SMD LEDs offer a wide range of color options, high brightness levels, and excellent energy efficiency. They are commonly used in applications where flexibility and precise control of lighting are important, such as in displays, signs, and architectural lighting.

On the other hand, COB, or Chip-on-Board, LEDs are designed to provide higher output and better uniformity. In COB LEDs, multiple diodes are integrated onto a single chip. This configuration allows for better heat dissipation and increased lumen output. COB LEDs are often used in high-intensity lighting applications, such as floodlights, track lighting, and automotive headlights.

When choosing between SMD and COB LEDs, it is important to consider the specific requirements of the lighting project. SMD LEDs are more suitable for applications that require flexibility, color options, and precise control, while COB LEDs are better suited for applications that demand high-intensity, uniform illumination. Both options have their strengths and limitations, so it is essential to assess the project’s needs before making a decision.

Can SMD LEDs be dimmed?

Yes, SMD LEDs (Surface Mounted Device LEDs) can be dimmed using appropriate dimming methods such as pulse width modulation (PWM) or analog dimming techniques.

Conclusion

In essence, SMD LEDs are a pivotal innovation in the field of illumination.

With precision, SMD LEDs represent a convergence of miniaturization and efficiency. Embodying the cutting-edge of lighting technology, they merge high luminosity, color fidelity, and energy efficiency into a singular package. Their widespread adoption across myriad sectors demonstrates their versatility and affirms their status as a staple in modern lighting design. They embody an optimal choice for those seeking sophisticated illumination solutions that cater to intricate design requirements and energy conservation goals.

Furthermore, their ongoing development is a testament to the industry’s commitment to constant improvement. From backlit displays to architectural lighting, SMD LEDs play an essential role in lighting up our modern world with their technical sophistication and operational efficiency that cater for the stringent requirements of various applications.

In concluding our exploration of SMD LEDs, it is clear that their influence extends far beyond mere functionality. As pillars of the LED lighting community, they represent progressive milestones in technology evolution, continuing to push the envelope of what’s possible in lighting. Their capabilities enhance our visual environment in countless ways, making them indispensable components in the arsenal of lighting professionals. Their advancement dictates a continuation of innovation, ensuring that the future of lighting remains bright, versatile, and, importantly, sustainable.
