LED Strip Lights Length Guide: Which Size Fits Your Space?

You are here: Home » Blog
LED Strip Lights Length

Table of Contents

Imagine your living space transformed by the captivating glow of LED strip lights, gracefully meandering around the contours of the room. Much more than mere functional lighting, LEDs offer an immersive ambience that enriches any interior. Yet, professionals and enthusiasts alike often ponder the maximum length these LED strips can extend to without compromising their luminous efficacy.

Length matters.

Choosing the optimal strip length is pivotal, not just for aesthetic alignment, but also to ensure electrical efficiency and luminance. The strip’s length directly influences the consistency of illumination, a critical factor for achieving the desired lighting effect.

Understanding LED Strip Length Limits

Voltage drop is an inherent limitation within LED strip lights that influences maximum length. As electricity travels along a strip, the voltage diminishes, causing reduced luminance and color inconsistencies over longer distances.

For standard 12V strips, the rule of thumb suggests a maximum unbroken length of 5 meters (about 16.4 feet) to maintain optimal brightness and color fidelity. Exceeding this length without additional power supplies risks compromised lit quality and potentially overtaxes the power source.

Relative width of LED strips typically ranges between 8 to 12 millimeters, which does not inherently affect the maximum length but is important for compatibility with connectors and installation channels.

Power Voltage Drop Explained

As electrical current flows through an LED strip, voltage begins to decrease, which can impact performance. The losses intensity manifest as dimmer light towards the end of the strip.

To mitigate this effect, most LED strips are limited to a set length, often around 16 feet for 12V systems. Beyond this, users encounter diminished brightness and potential color inconsistencies, necessitating additional power sources.

Exceeding optimal length can lead to underwhelming illuminance and decrease the visual impact of LED lighting.

When longer illumination runs are required, solutions include segmenting the strip into shorter lengths with independent power feeds or utilizing higher voltage LED strips. These methods prevent significant voltage drop-off, thus maintaining brightness and chromatic integrity.

Standard Maximum Lengths

The maximum length of LED strip lights is predominantly determined by voltage and current capacity.

  1. 12V LED Strips: Typically capped at 16 feet (5 meters) to prevent notable voltage drop.
  2. 24V LED Strips: Can run up to 32 feet (10 meters) before experiencing significant voltage drop.
  3. Higher Voltage Systems: May extend beyond 32 feet, with some configurations reaching up to 65 feet (20 meters) or more.

Beyond these standards, brightness and color consistency are compromised, necessitating different power strategies.

Considering the width, LED strip lights typically range from 8 to 12 millimeters, impacting installation rather than length.

Factors Determining LED Strip Length

The attainable length of LED strip lights hinges upon several factors clearly embedded within their electrical and design specifications. Voltage drop emerges as the primary concern, setting a boundary on the length after which the luminosity and color accuracy begin to dwindle. Additionally, the power supply’s current capacity must align with the strip’s consumption to prevent overheating and ensure stable operation. Strip construction, namely the PCB width, also influences the heat dissipation and current carrying capabilities, indirectly affecting the maximum feasible length. Furthermore, the type and density of LEDs used can dictate the electrical load over a given length, necessitating a shorter maximum run to uphold integrity in illumination. It is imperative to consider these elements collectively when determining the appropriate length for a given application.

Electrical Current and Wattage

The flow of electrical current and the corresponding wattage heavily govern an LED strip’s maximal operational length.

  • The power draw per meter or foot indicates the wattage required.
  • Voltage and current determine how much length can be powered without loss.
  • Heat generation influences current capacity and longevity.
  • Resistive voltage drop limits the length of an LED strip.

An overextended strip length can strain the power supply, leading to diminished performance and potential failure.

Properly matched wattage and current specifications ensure a harmonious and efficient LED strip configuration, maximizing length without compromising the strip’s integrity.

LED Density and Type

The LED density on a strip refers to the number of LEDs per unit length, which can influence the maximum strip length.

  • SMD 5050: Typically 60 LEDs per meter (standard density)
  • SMD 3528: Can have densities upwards of 120 LEDs per meter
  • High Density Strip Lights: Often contain 240 LEDs per meter or more
  • COB LED Strips: Utilize chip-on-board technology for seamless light with high LED density

A higher LED density often means a shorter maximum continuous length due to increased power draw and heat generation.

Selecting the appropriate LED type and density is fundamental for achieving the desired illumination while maintaining electrical and thermal efficiency over the span of the strip.

Extending LED Strip Lights Beyond the Basics

connection with dimmer

When considering the extension of LED strip lights, the concept of voltage drop enters the conversation. As current flows through the electrical circuit of the strip, resistance converges to reduce voltage over distance. This phenomenon leads to a gradual decrement in brightness, which manifests conspicuously along extensive lengths.

To confront this inherent limitation, strategic installation techniques are employed. Multiple runs of LED strip lights can be connected in parallel, effectively bypassing the restriction of a singular, unbroken run. This approach necessitates a meticulous distribution of power, ensuring that each section receives a consistent voltage. Thus, one can circumvent the common pitfall of voltage drop, preserving uniform luminance across extensive installations.

Amplifiers and Repeaters Use

Amplifiers and repeaters are crucial for maintaining signal integrity in long LED strip configurations. As electrical current traverses through the LED strip, resistance induces a voltage drop, ultimately diminishing brightness and color accuracy. This issue is particularly pronounced with extended strip lengths, where the effect becomes visually perceptible.

In such scenarios, amplifiers serve to bolster the signal at specific intervals, effectively resetting the voltage and current to optimal levels. This permits extended uninterrupted runs without sacrificing the LED strip’s performance. Typically, an amplifier would be placed after every 5 to 10 meters, contingent upon the strip’s power requirements and the power supply’s capabilities.

Repeaters, on the other hand, act as regenerators for the PWM (Pulse Width Modulation) signals that control dimming and color changes. They are integral when long distances could potentially degrade these control signals, jeopardizing the synchronous operation of the lighting system. A repeater reconstitutes the signal fidelity, enabling commands to propagate through extended lengths of LED strips without loss of function.

To facilitate these devices, appropriate power must be directed to both the amplifiers and repeaters. This demands a thoughtful layout and wiring plan that accounts for power distribution and signal propagation across the length of the installation.

The use of amplifiers and repeaters ensures uniform illumination and consistent control over long stretches of LED strip lights, a necessity in professional lighting applications. With careful planning, one can achieve impressive spans of continuous lighting without encountering the barriers imposed by voltage drop and signal degradation.

Parallel Run Strategies

To mitigate voltage drop, parallel wiring strategies are crucial. This configuration allows for consistent voltage levels across extended runs of LED strip lights by utilizing several shorter strips connected in parallel from a single power supply.

Long LED installations often implement parallel connections, effectively dividing the electrical load among multiple paths. By limiting the length of each individual strip, it reduces the cumulative effect of resistance, ensuring the voltage remains within optimal levels necessary for uniform brightness and color consistency across the entire run.

However, the design of parallel circuits requires meticulous planning. The amperage draw on the power supply must be carefully calculated to prevent overloading. This entails accounting for the current demands of each strip segment to ascertain that the power supply can handle the cumulative load without failing or overheating.

Carefully structured, these parallel circuits maintain brightness and color uniformity over significant distances—key for large-scale installations such as cove lighting in expansive commercial settings. Such configurations distribute power more equally, with the added benefit of creating redundancy; if one strip fails, the others remain lit, thus ensuring continued operation and ease of maintenance.

Common LED Strip Widths and Implications

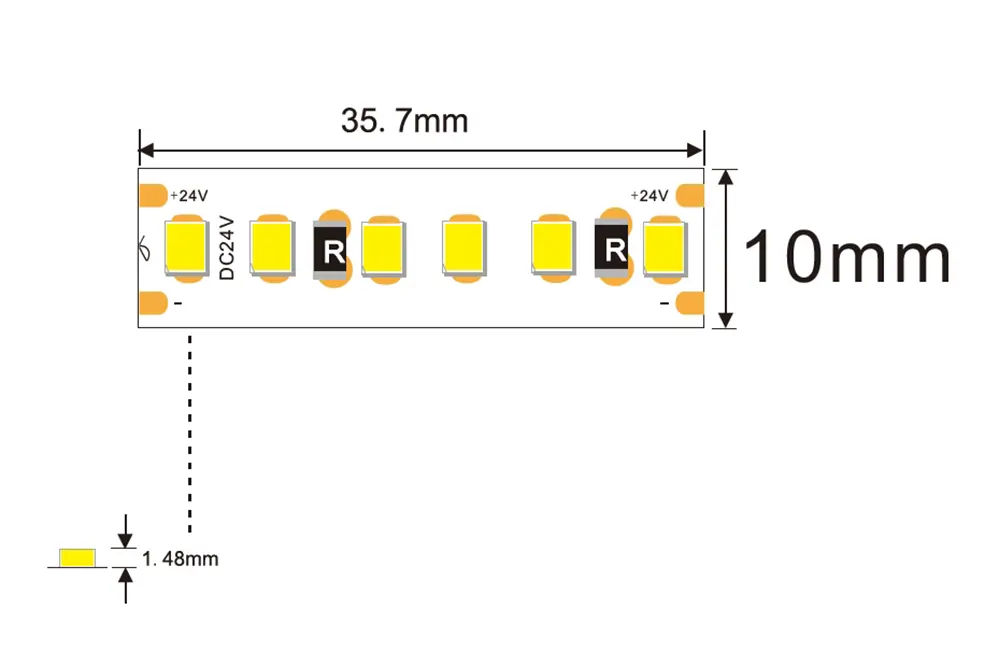

10mm LED Strip Lights

The width of LED strip lights can range from narrow options, typically around 8 to 10 millimeters, to wider formats, which may extend up to 15 millimeters or more. These dimensions influence not only the physical fit within a given space but also the potential heat dissipation and current carrying capacity of the strip, factors that are integral to the performance and longevity of the LED installation.

Wider strip widths generally allow for more substantial electronic components and possibly a higher density of LED chips, which can result in increased luminosity and improved thermal management. Such characteristics are particularly relevant when considering the maximization of light output within confined or heat-sensitive areas.

Standard Width Variations

The most common width for LED strip lights hovers around 10 millimeters, a size that balances flexibility with sufficient space for standard chip sizes and circuitry. Flexible PCB (Printed Circuit Board) material typically adheres to this dimension, ensuring compatibility with a wide range of connectors and mounting profiles.

Narrower strips may descend to widths as low as 8 millimeters. These compact strips are ideal for subtle, discreet lighting in tighter spaces where wider strips would be impractical.

However, there are options extending up to 12 millimeters or occasionally 15 millimeters. These wider strips accommodate larger LEDs (such as 5050 or 5630 chip sizes) which promise higher brightness and often better heat dissipation.

Some specialized LED strips can exceed standard width dimensions, particularly those designed for high-output commercial and industrial applications. They provide ample space for additional electronic components, which can enhance the functionality and durability of the lighting solution.

Even wider strips, which might measure upwards of 15 millimeters, require specific connectors and can offer advanced features like increased wattage per meter, wider CCT (Correlated Color Temperature) ranges, and greater lumen outputs to support expansive lighting designs.

Ultimately, the width of an LED strip needs to be matched with its intended application. A correctly selected width aligns with the installation’s aesthetic goals, ensures thermal performance is met, and guarantees that electrical requirements are safely and efficiently accommodated.

Impact on Length and Installation

The length of LED strips is critically interconnected to their performance. When deployed over extensive distances, voltage drop becomes a prevalent issue, necessitating a meticulously planned powering strategy.

Extended lengths raise the risk of cumulative electrical resistance. This can dim LEDs towards the end of a long run.

Hence, sections beyond a certain length need separate power supplies, ensuring uniform brightness (a practice known as voltage injection) across the entire strip.

Consideration towards the thermal management of longer strips is also paramount. Overheated LEDs can lead to premature failure, affecting both luminosity and color consistency.

Installation complexity rises with increased strip length, especially when working with corners, bends, and extended surfaces. Precision in planning and execution is essential to maintain the aesthetic and functional integrity of the lighting design.

Moreover, wide LEDs require proportionately more space for installation. Carefully measured and preplanned layouts are crucial to ensure that these larger strips fit seamlessly within the desired application area.

FAQs

How long can an LED strip light be?

Generally, standard LED strip lights span up to 5 meters (16.4 feet).

What determines the maximum length of an LED strip?

The limiting factor is voltage drop, where voltage gradually decreases along the length of the strip, resulting in dimmer light towards the end. High-quality strips with thicker copper traces can help mitigate this effect.

Can LED strips be connected end-to-end to create longer lengths?

Yes, by using connectors or soldering, but it’s crucial to manage voltage drop and power distribution to prevent brightness inconsistencies.

Are wider LED strips available for specific applications?

Indeed, LED strip widths vary, typically ranging from 8 to 10 millimeters (approximately 0.31 to 0.39 inches), with specialized versions providing greater width for increased luminosity or unique design requirements.

How many feet can you run LED strip lights?

LED strip lights can be run for a certain distance, depending on various factors such as voltage drop and power supply capabilities. Generally, you can run LED strip lights up to a maximum of 16-32 feet, depending on the specific type and quality of the LED strip.

It is important to consider the voltage drop over longer distances. As the LED strip lights are connected, the voltage decreases, which can result in dimmer lights towards the end of the run. Using a higher voltage power supply or shorter runs can help minimize voltage drop and ensure consistent brightness throughout the length of the strip.

To extend the run length beyond the maximum recommended, you can use amplifiers or repeaters. These devices regenerate the signal and allow you to continue the LED strip lights run. However, it’s important to consult with a lighting professional to ensure proper installation and avoid overloading the power supply.

Additionally, it’s important to consider the power requirements of the LED strip lights. Each strip has a certain wattage per foot, and exceeding the maximum wattage can lead to overheating and potential damage. Be sure to check the specifications provided by the manufacturer and ensure that the power supply can handle the load.

In conclusion, the maximum run length for LED strip lights is typically around 16-32 feet, depending on voltage drop and power supply capabilities. To extend the run, you can use amplifiers or repeaters, but caution should be taken to ensure proper installation and avoid overloading the power supply. Always refer to the manufacturer’s specifications for the specific LED strip lights you are working with.

What is the longest possible LED strip?

The longest possible LED strip depends on a few factors such as the available power source, the LED chip density, and the controller capabilities. Generally, LED strips come in standard lengths ranging from a few inches to several feet. However, these lengths can be extended by connecting multiple strips end-to-end.

LED strips can be cut or connected at specific points called cut lines or connection points. This allows for customization and flexibility in creating different lengths according to the desired lighting design. By using connectors or soldering wires, it is possible to connect individual strips to create longer runs.

It is important to consider the power requirements and limitations when extending LED strips. Longer strips may require additional power sources or signal amplifiers to ensure consistent brightness and color accuracy across the whole length. It is recommended to consult the manufacturer’s guidelines or seek expert advice when planning to create longer LED strip installations.

In summary, the longest possible LED strip depends on various factors including power source, LED chip density, and available connectors. By properly extending and connecting individual strips, it is possible to create longer runs of LED lighting while ensuring the necessary power and signal requirements are met.

How far can you run a 24V LED strip?

How far can you run a 24V LED strip? The distance that a 24V LED strip can be run depends on several factors, including the wattage of the strip and the gauge of the wire used. In general, a 24V LED strip can be run for up to 30 meters (98 feet) without experiencing significant voltage drop.

However, it’s important to remember that as the length of the LED strip increases, the voltage drop becomes more noticeable. To mitigate this, it is recommended to use a larger wire gauge or install amplifiers or repeaters along the strip to boost the signal and maintain consistent lighting levels.

It’s also worth noting that it’s always best to consult the manufacturer’s specifications for the specific LED strip you are using. They may have specific recommendations for maximum run lengths based on the product’s design and intended use.

In conclusion, while a 24V LED strip can be run for relatively long distances without significant voltage drop, it’s important to consider factors such as wattage, wire gauge, and the use of amplifiers or repeaters to ensure optimal performance and lighting quality. Always consult the manufacturer’s guidelines for specific recommendations.

How to measure LED strip length?

To measure the length of an LED strip, you will need a tape measure or ruler.

Start by determining where you want to install the LED strip. Take the tape measure and place it at one end of the area where you want to mount the strip. Extend the tape measure along the desired path of the strip, ensuring it follows any twists or turns. Make sure to measure the full length, including any corners or curves.

Take note of the measurement displayed on the tape measure. This will give you the length of the LED strip you need to purchase. It’s always a good idea to round up to the nearest whole number to ensure you have enough length to cover the desired area.

Keep in mind that some LED strips may have specific cutting points, where you can cut them down to the desired length. If this is the case, make sure to account for any additional length needed for connectors or wiring.

Once you have the measurements, you can proceed to select the appropriate length of LED strip for your project. By accurately measuring the length, you can ensure a precise fit and achieve the desired lighting effect.

Can LED strips be cut to size?

LED strips can indeed be cut to size! This means that you can customize the length of your LED strip to fit your specific needs and preferences. Whether you need a shorter strip for a small project or a longer strip for a larger space, LED strips can be easily adjusted to the desired length.

To cut an LED strip, you will need to locate the designated cut points along the strip. These points are typically marked with scissor or knife icons. Using a sharp pair of scissors or a utility knife, carefully cut through the strip at the designated cut point. Be sure to follow any specific instructions provided by the manufacturer for cutting their particular brand of LED strip.

Once you have cut the LED strip to your desired length, you may need to make additional modifications. For instance, you might need to reattach any connectors or wires that were previously attached to the cut section. This can usually be done by soldering or using specialized connectors that are compatible with your LED strip.

It’s worth noting that while LED strips can be cut to size, you should also consider the power requirements and limitations of the strip. Cutting an LED strip may affect its overall brightness and functionality, so it’s important to consult the manufacturer’s specifications and guidelines to ensure proper usage.

In conclusion, LED strips can be cut to size, allowing for flexibility and customization in your lighting projects. Just make sure to carefully follow the manufacturer’s instructions and consider any potential impact on brightness and functionality when cutting and modifying the LED strip.

How to connect multiple LED strips?

Connecting multiple LED strips requires careful planning and proper execution. To ensure a successful connection, follow these steps:

First, determine the power requirements of the LED strips. Check the power rating of each strip, usually indicated in watts per meter (W/m). Add up the wattage of all the strips you want to connect to determine the total power requirement.

Next, choose an appropriate power supply that can handle the total power requirement of the LED strips. Look for a power supply with a wattage rating equal to or slightly higher than the total power requirement to ensure stable performance.

When it comes to the physical connection, there are two common methods: series and parallel. In a series connection, you connect the positive end of one strip to the negative end of the next strip, and so on. This creates a continuous circuit where the current flows through each strip in sequence.

In a parallel connection, each strip is connected directly to the power supply. This method allows each strip to receive the full voltage and maintains brightness consistency across all strips. However, it requires separate connections for each strip and a power supply with enough current capacity to handle the combined load.

Whichever method you choose, make sure to use appropriate connectors or soldering techniques to establish secure and reliable connections between the LED strips. It’s also important to follow the manufacturer’s guidelines and precautions to avoid any damage to the strips or the power supply.

By following these guidelines and being mindful of the power requirements and connection methods, you can successfully connect multiple LED strips and achieve your desired lighting setup.

What is the ideal length for LED strip lights?

The ideal length for LED strip lights depends on several factors, such as the desired application and the specific requirements of the space. Longer LED strip lights can provide continuous and uniform lighting, making them suitable for larger areas or where a seamless lighting effect is desired. On the other hand, shorter LED strip lights can be more versatile and easier to install in smaller spaces or for targeted lighting applications.

In general, LED strip lights come in various lengths, ranging from a few inches to several feet. The most common lengths include 1 meter (3.28 feet), 2 meters (6.56 feet), and 5 meters (16.4 feet). These standard lengths are widely available and can be easily cut or connected to achieve the desired length.

It’s essential to consider the dimensions of the area you want to illuminate when choosing the ideal length for LED strip lights. Measure the length and width of the space to understand how much lighting coverage you need. Additionally, consider any corners or bends in the area and choose a length that allows for smooth installation without interrupting the lighting effect.

In summary, the ideal length for LED strip lights depends on the specific requirements and dimensions of the space. Consider the application, desired lighting effect, and available standard lengths when selecting the appropriate size for your LED strip lights.

Where to install long LED strip lights?

Long LED strip lights can be installed in a variety of locations to enhance the lighting design and create a visually stunning effect. One popular option is to install them underneath kitchen cabinets or shelving units. This placement can provide both functional task lighting and a visually pleasing ambiance, especially in a modern or contemporary kitchen.

Another great location for long LED strip lights is along the edges of stairs or step risers. This not only adds an element of safety by illuminating the steps, but also creates a dramatic and modern look. It’s important to ensure that the strip lights are installed securely and evenly to prevent any tripping hazards.

In addition, long LED strip lights can be installed along the perimeter of a room, near the ceiling or even on the floor to create a soft, indirect lighting effect. This can add depth and dimension to the space, making it feel larger and more inviting. This technique is commonly used in living rooms, bedrooms, and home theaters.

For those looking to make a bold statement, installing long LED strip lights behind a TV or behind a headboard can create a unique and eye-catching effect. The soft glow of the lights can enhance the viewing experience or create a cozy atmosphere in the bedroom.

Ultimately, the best location to install long LED strip lights will depend on the specific needs and desired aesthetic of the space. It’s important to carefully plan the installation and consider factors such as power source, color temperature, and the overall mood or atmosphere you want to create. Consulting with a lighting professional can provide valuable guidance and ensure a successful installation.

When to use shorter LED strip lights?

When choosing to use shorter LED strip lights, there are a few factors to consider. Firstly, shorter LED strip lights are ideal when you need precise and focused lighting in a specific area. They allow for more control and can be easily customized to fit smaller spaces or to create unique lighting designs.

Additionally, shorter LED strip lights are often used when you want to accentuate certain features or objects. Their compact size makes them perfect for highlighting artwork, architectural details, or decorative elements in a space. Using shorter LED strip lights in these situations can add depth and dimension to the overall lighting scheme.

It’s worth noting that shorter LED strip lights can also be used as task lighting. For example, in a kitchen or workspace where focused illumination is needed, smaller lengths of LED strip lights can be placed under cabinets or shelves to provide direct lighting for specific tasks.

Moreover, if you require flexibility in your lighting design, shorter LED strip lights can be interconnected to create customized lengths. This allows for greater versatility and the ability to adapt the lighting arrangement to match the unique requirements of a particular space.

In conclusion, the decision to use shorter LED strip lights is driven by the need for precision, focused lighting, accentuating specific features, task lighting, and flexibility in design. By considering these factors, you can determine when shorter LED strip lights are the ideal choice for your lighting project.

Conclusion

LED strip lights have practical length limitations due to voltage drop and power requirements. However, advancements in LED technology and power distribution allow for customized installations beyond traditional limits. It’s important to note that increasing length affects illumination uniformity, so careful planning and the use of amplifiers or power injection are necessary for optimal performance. LED strip lights also come in various widths to suit different installation needs and achieve desired lighting effects. In summary, while there are standard length constraints, professional strategies can responsibly extend these boundaries.

To ensure optimal performance and achieve desired lighting effects, it is recommended to consult with a professional manufacturer like Unitop, who specializes in LED strip lights and LED neon strip. With their expertise and attention to detail, Unitop can provide tailored solutions to meet your specific lighting needs. Contact Unitop today to explore the possibilities and bring your lighting vision to life.
