The Ultimate Guide to CSP LED Strip: Illumination 101

You are here: Home » Blog
UTFS-CSP480-2408-14W CSP LED Strip-IP68 (5)

Table of Contents

In the ever-evolving world of lighting technology, CSP LED strips stand out as a game-changer due to their exceptional durability. These compact, high-performance lighting solutions are revolutionizing how we illuminate our homes, workplaces, and even our vehicles. Whether you’re a lighting enthusiast or a professional in the industry, understanding the intricacies of CSP LED strips can open up a world of possibilities for your next project. This comprehensive guide will walk you through everything you need to know about CSP LED strips, from their unique features to their wide range of applications.

Imagine transforming your living space with lighting that not only enhances the ambiance but also offers unparalleled energy efficiency and longevity. CSP LED strips are designed to do just that. With their superior thermal management, high lumen output, and uniform light distribution, these LED strips are quickly becoming the go-to choice for both residential and commercial lighting solutions. But what exactly sets CSP LED strips apart from traditional LEDs? And how can you make the most of their advanced technology in your own projects? This guide aims to answer these questions and more.

I’m Tom, and I’ve been immersed in the LED lighting industry since 2005. Over the years, I’ve gained extensive knowledge about various LED technologies, particularly LED strip lights. My passion for lighting and my commitment to staying updated with the latest advancements have driven me to create this blog post. Drawing from my years of experience and industry insights, I’ve crafted this guide to help you navigate the world of CSP LED strips with confidence and ease.

So, whether you’re looking to upgrade your home lighting or explore new possibilities in commercial applications, this guide has got you covered. Let’s dive right in and discover the incredible potential of CSP LED strips!

Key Takeaways

  • CSP LED strips offer high performance, energy efficiency, and flexibility.
  • They are suitable for a wide range of applications, from residential to industrial lighting.
  • Proper selection, installation, and maintenance are crucial for optimal performance and longevity.

Part 1: Introduction to CSP LED Strips

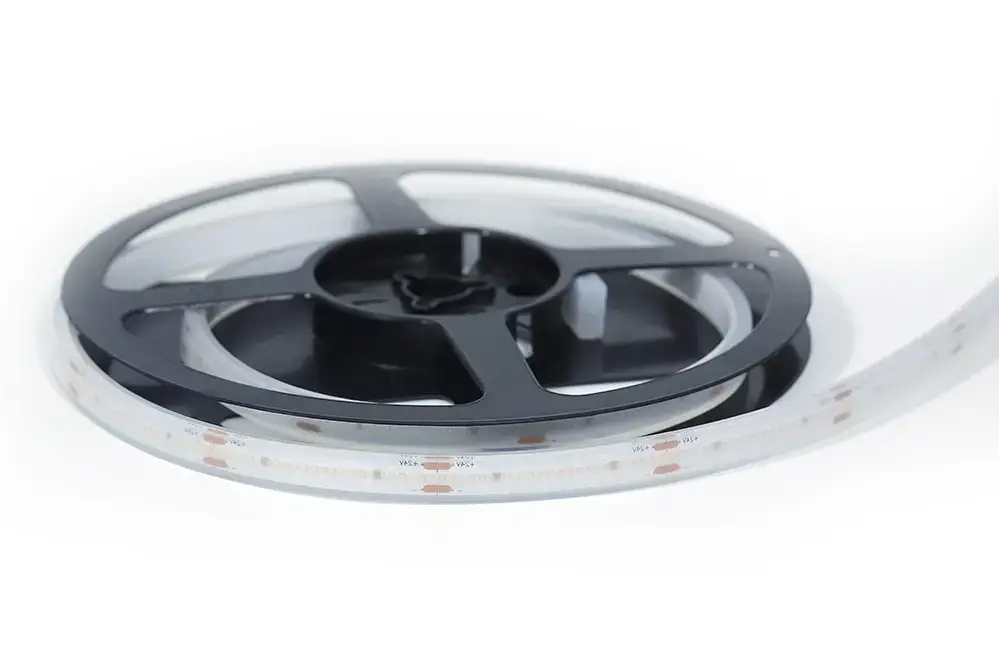

UTFS-CSP480-2408-14W CSP LED Strip-IP68 (8)

What is a CSP LED Strip?

CSP LED, or Chip Scale Package LED, represents a significant advancement in LED technology. Unlike traditional LEDs, CSP LEDs are designed without a package, meaning the LED chip itself is directly mounted on the PCB (Printed Circuit Board). This design minimizes the size of the LED, allowing for more compact and efficient lighting solutions.

Differences Between CSP LEDs and Traditional LEDs

Traditional LEDs, such as SMD (Surface-Mounted Device) and COB (Chip on Board), come with a package that houses the LED chip. CSP LEDs, on the other hand, eliminate this package, resulting in a smaller footprint and better thermal performance. This difference translates into several advantages for CSP LED strips.

Advantages of CSP Technology in LED Strips

  1. Compact Size: CSP LEDs are significantly smaller, allowing for more flexible and versatile designs.
  2. Enhanced Thermal Management: The direct mounting of the LED chip improves heat dissipation, enhancing the lifespan and performance of the LED strip.
  3. Higher Lumen Output: CSP LEDs can produce more light per unit area, making them ideal for applications requiring high brightness.
  4. Uniform Light Distribution: The design of CSP LEDs ensures a more even light spread, reducing hotspots and shadows.

Key Features of CSP LED Strips

High Lumen Output

CSP LED strips are known for their high lumen output, which means they can produce a significant amount of light while consuming less power. This makes them ideal for both residential and commercial applications where bright, efficient lighting is required.

Compact Size and Flexibility

The small size of CSP LEDs allows for more flexible and compact designs. This flexibility makes CSP LED strips suitable for a variety of applications, from intricate architectural lighting to automotive lighting solutions.

Enhanced Thermal Management

One of the standout features of CSP LED strips is their superior thermal management. The direct mounting of the LED chip on the PCB allows for better heat dissipation, which in turn extends the lifespan of the LED strip and maintains its performance over time.

Uniform Light Distribution

CSP LED strips provide uniform light distribution, ensuring that the light is evenly spread across the surface. This feature is particularly important in applications where consistent lighting is crucial, such as in retail displays or architectural installations.

Applications of CSP LED Strips

CSP LED Strip in Sauna Room

Residential Lighting

CSP LED strips are perfect for residential lighting applications. Their compact size and high lumen output make them ideal for under-cabinet lighting, accent lighting, and even general room illumination. (Image: LED strips in the kitchen)

Commercial and Industrial Lighting

In commercial and industrial settings, CSP LED strips offer energy-efficient and high-performance lighting solutions. They can be used in offices, warehouses, and retail spaces to provide bright and uniform lighting.

Automotive Lighting

CSP LED strips are also widely used in automotive lighting. Their compact size and high brightness make them suitable for headlights, taillights, and interior lighting applications. (Image: LED strips in car headlights)

Architectural and Decorative Lighting

For architectural and decorative lighting, CSP LED strips offer unparalleled flexibility and design possibilities. They can be used to highlight architectural features, create dynamic lighting effects, and enhance the aesthetic appeal of any space.

Benefits of Using CSP LED Strips

Energy Efficiency

CSP LED strips are highly energy-efficient, consuming less power while providing high brightness. This efficiency translates into lower energy bills and a reduced carbon footprint.

Long Lifespan

Thanks to their superior thermal management, CSP LED strips have a longer lifespan compared to traditional LED strips. This longevity reduces the need for frequent replacements, saving both time and money.

Low Maintenance

With their robust design and long lifespan, CSP LED strips require minimal maintenance. This makes them an ideal choice for both residential and commercial applications where reliability is key.

Versatility in Design and Installation

The compact size and flexibility of CSP LED strips allow for a wide range of design and installation possibilities. Whether you need to light up a small space or create a complex lighting design, CSP LED strips offer the versatility you need.

Comparison with Other LED Technologies

Left ImageRight Image

CSP LEDs vs. SMD LEDs (Surface-Mounted Device)

  • Size: CSP LEDs are smaller than SMD LEDs, allowing for more compact designs.
  • Thermal Management: CSP LEDs offer better thermal management due to their direct mounting on the PCB.
  • Light Output: CSP LEDs provide higher lumen output per unit area compared to SMD LEDs.

CSP LEDs vs. COB LEDs (Chip on Board)

  • Size: CSP LEDs are smaller and more flexible in design compared to COB LEDs.
  • Thermal Management: Both CSP and COB LEDs offer good thermal management, but CSP LEDs have an edge due to their direct mounting.
  • Light Distribution: CSP LEDs provide more uniform light distribution compared to COB LEDs.

Pros and Cons of Each Technology

CSP LEDsCompact size, High lumen output, Better thermal management, Uniform light distributionHigher cost
SMD LEDsCost-effective, Widely availableLarger size, Less efficient thermal management
COB LEDsHigh lumen output, Good thermal managementLarger size, Less flexible design

Part 2: Choosing and Installing CSP LED Strips

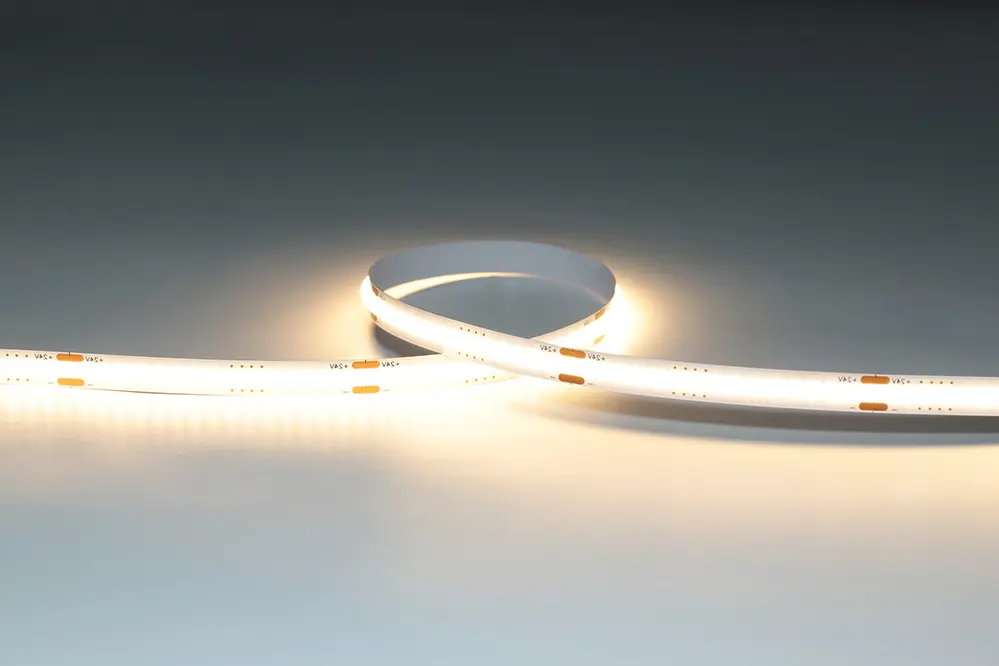

UTFS-CSP512-2408-8W CSP LED Strip-IP20

How to Choose the Right CSP LED Strip

Determining the Purpose and Requirements

Before selecting a CSP LED strip, it’s essential to determine the purpose and specific requirements of your project. Are you looking for accent lighting, task lighting, or general illumination? Understanding the purpose will help you choose the right brightness, color temperature, and other features.

Considering Brightness and Color Temperature

Brightness is measured in lumens, and the right level of brightness depends on the application. For example, task lighting requires higher brightness compared to accent lighting. Color temperature, measured in Kelvin (K), affects the ambiance of the space. Warm white (2700K-3000K) creates a cozy atmosphere, while cool white (5000K-6500K) is suitable for task-oriented spaces.

Evaluating IP Rating for Waterproofing

If you plan to use CSP LED strips in areas exposed to moisture, such as bathrooms or outdoor spaces, it’s crucial to check the IP rating. The IP rating indicates the level of protection against dust and water. For outdoor use, an IP65 rating or higher is recommended.

Checking Power Supply Compatibility

Ensure that the power supply is compatible with the voltage and current requirements of the CSP LED strip. Using an incompatible power supply can lead to performance issues and even damage the LED strip.

Installation Guide for CSP LED Strips

Tools and Materials Needed

To install CSP LED strips, you’ll need the following tools and materials:

  • CSP LED strip
  • Power supply
  • Connectors
  • Scissors or a sharp knife
  • Measuring tape
  • Soldering iron (if needed)
  • Heat shrink tubing (for connections)

Step-by-Step Installation Process

  1. Measure and Cut: Measure the length of the area where you want to install the LED strip and cut the strip to the desired length. (Image: Measuring and cutting LED strip)
  2. Connect the Power Supply: Connect the LED strip to the power supply using connectors or by soldering the wires. Ensure that the connections are secure and insulated.
  3. Mount the LED Strip: Peel off the adhesive backing and mount the LED strip in the desired location. Press firmly to ensure good adhesion.
  4. Test the Installation: Turn on the power supply and test the LED strip to ensure it is working correctly.

Tips for Cutting and Connecting Strips

  • Always cut the LED strip at the designated cutting points to avoid damaging the circuit.
  • Use connectors for a quick and easy connection, or solder the wires for a more secure connection.
  • Insulate the connections with heat shrink tubing to prevent short circuits.

Ensuring Proper Heat Dissipation

Proper heat dissipation is crucial for the longevity and performance of CSP LED strips. Ensure that the LED strip is mounted on a surface that can dissipate heat, such as aluminum profiles or heat sinks.

Power Supply and Controllers for CSP LED Strips

Types of Power Supplies (Constant Voltage vs. Constant Current)

There are two main types of power supplies for LED strips: constant voltage and constant current. CSP LED strips typically require a constant voltage power supply, which provides a stable voltage regardless of the current draw.

Choosing the Right Power Supply

When choosing a power supply, consider the following factors:

  • Voltage: Ensure that the power supply voltage matches the voltage requirement of the LED strip.
  • Current: The power supply should provide enough current to power the entire length of the LED strip.
  • Wattage: Calculate the total wattage of the LED strip and choose a power supply with a wattage rating that exceeds this value by at least 20% to ensure reliable operation.

Overview of LED Strip Controllers

LED strip controllers allow you to adjust the brightness, color, and effects of the LED strip, providing precise controls for your lighting setup. There are various types of controllers available, including:

  • Dimmers: Simple controllers that adjust the brightness of the LED strip.
  • RGB Controllers: Controllers that allow you to change the color of RGB LED strips.
  • Smart Home Integration: Advanced controllers that integrate with smart home systems, allowing you to control the LED strip using voice commands or a mobile app.

Maintenance and Troubleshooting

Common Issues and Solutions

  • Flickering: Flickering can be caused by an incompatible power supply or loose connections. Ensure that the power supply matches the voltage and current requirements of the LED strip and check all connections.
  • Overheating: Overheating can occur if the LED strip is not properly mounted on a heat-dissipating surface. Ensure that the LED strip has adequate ventilation and is mounted on a suitable surface.
  • Connection Problems: Loose or faulty connections can cause the LED strip to malfunction. Check all connections and ensure they are secure and insulated.

How to Prolong the Lifespan of CSP LED Strips

  • Proper Installation: Ensure that the LED strip is installed correctly with proper heat dissipation.
  • Avoid Overloading: Do not exceed the maximum current rating of the LED strip.
  • Regular Maintenance: Periodically check the LED strip and power supply for any signs of wear or damage.

Safe Handling and Storage Tips

  • Handle with Care: Avoid bending or twisting the LED strip excessively.
  • Store Properly: Store the LED strip in a cool, dry place away from direct sunlight and moisture.
  • Avoid Static Electricity: Use anti-static measures when handling the LED strip to prevent damage from static electricity.

Future Trends in CSP LED Technology

Innovations and Advancements

CSP LED technology continues to evolve, with ongoing innovations aimed at improving performance and efficiency. Some of the latest advancements include:

  • Higher Efficiency: New materials and designs are being developed to increase the efficiency of CSP LEDs.
  • Improved Thermal Management: Advanced cooling solutions are being integrated into CSP LED strips to enhance thermal management.
  • Smart Integration: CSP LED strips are being designed with smart features, allowing for seamless integration with smart home systems.

Potential Applications and Market Growth

The market for CSP LED strips is expected to grow significantly in the coming years, driven by increasing demand for energy-efficient and high-performance lighting solutions. Potential applications include:

  • Smart Lighting: Integration with smart home systems for automated and customizable lighting.
  • Wearable Technology: Use in wearable devices for flexible and compact lighting solutions.
  • Advanced Automotive Lighting: Enhanced lighting solutions for automotive applications, including adaptive headlights and interior lighting.

Environmental Impact and Sustainability

CSP LED technology offers several environmental benefits, including:

  • Energy Efficiency: Reduced energy consumption compared to traditional lighting solutions.
  • Long Lifespan: Longer lifespan reduces the need for frequent replacements, minimizing waste.
  • Reduced Carbon Footprint: Lower energy consumption and longer lifespan contribute to a reduced carbon footprint.


What is the difference between CSP and SMD LEDs?

CSP LEDs are smaller and offer better thermal management compared to SMD LEDs. This results in higher efficiency and more compact designs.

Can I cut and customize CSP LED strips?

Yes, CSP LED strips can be cut and customized, but it requires careful handling and proper tools. Always cut at the designated points and use appropriate connectors or soldering techniques.

Are CSP LED strips suitable for outdoor use?

Yes, but you need to choose strips with appropriate IP ratings for waterproofing. An IP65 rating or higher is recommended for outdoor applications.

How do I choose the right power supply for my CSP LED strip?

Consider the voltage and current requirements of the LED strip and select a compatible power supply. Ensure that the power supply wattage exceeds the total wattage of the LED strip by at least 20%.

What are the common issues with CSP LED strips and how to fix them?

Common issues include flickering, overheating, and connection problems. These can be fixed with proper installation, ensuring adequate heat dissipation, and checking all connections for security and insulation.

By understanding the unique features and benefits of CSP LED strips, you can make informed decisions for your lighting projects, ensuring optimal performance and longevity. Whether you’re illuminating a residential space, enhancing a commercial environment, or creating dynamic automotive lighting, CSP LED strips offer a versatile and efficient solution.


In conclusion, CSP LED strips offer a transformative lighting solution with their compact design, high lumen output, and exceptional thermal management. Whether you’re looking to enhance your home, office, or vehicle lighting, these advanced LED strips provide unmatched efficiency, longevity, and versatility. As you explore the potential of CSP LED technology, remember that proper selection, installation, and maintenance are key to maximizing their benefits.
